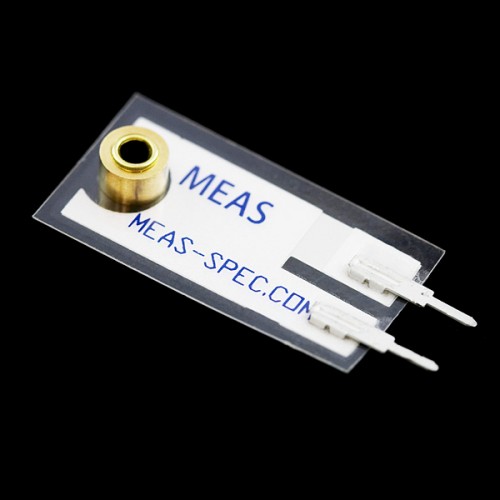

Piezo Vibration Sensor - Large with Mass

Product Code: SFE SEN-09197

Piezo Vibration Sensor - Large with Mass

₹279.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Description

This basic piezo sensor from Measurement Specialties is often used for flex, touch, vibration and shock measurements. A small AC and large voltage (up to +/-90V) is created when the film moves back and forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

Comes with solderable crimp pins and a mass attached to the tip. This mass increases the sensitivity to motion.

Features:

  • Flexible PVDF Piezo Polymer Film
  • Wide dynamic range
  • Laminated for higher voltage output
  • 0.1" breadboard friendly leads
