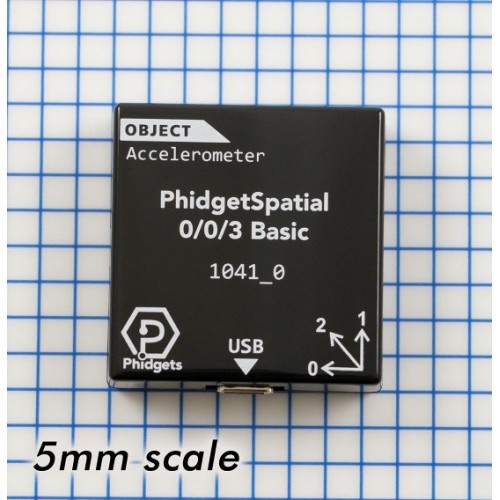

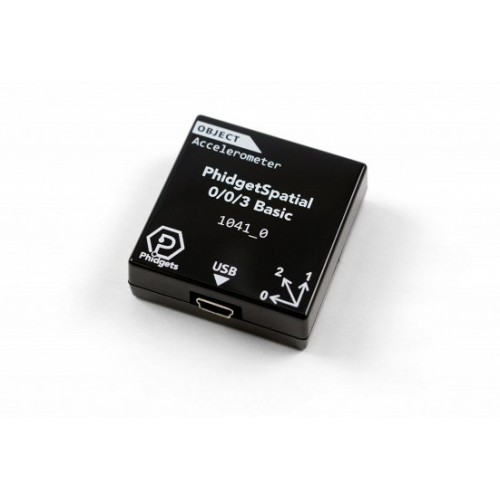

PhidgetSpatial 0/0/3 Basic

Product Code: Phidgets 1041_0B

PhidgetSpatial 0/0/3 Basic
PhidgetSpatial 0/0/3 Basic
PhidgetSpatial 0/0/3 Basic
Brand: Phidgets

₹3,999.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List

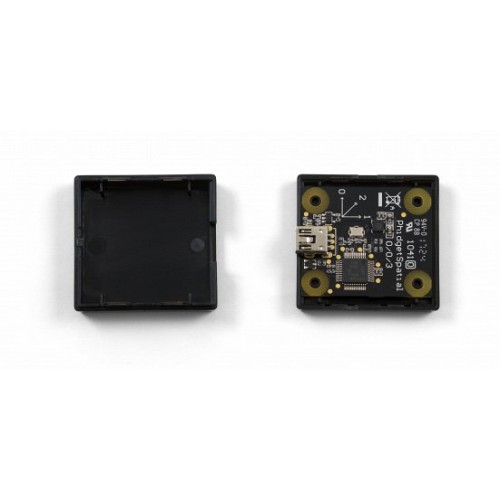

The 1041_0B is identical to the 1041_0, except that it comes pre-assembled in a plastic shell enclosure and you have the option of which length of USB cable you want to include.

The PhidgetSpatial 0/0/3 is a 3-axis accelerometer that can measure up to ±8g of acceleration in each axis. It is an inexpensive alternative to the 1043 - PhidgetSpatial Precision 0/0/3, and is ideal for applications where it's more important to know the direction of acceleration than the precise amount.

The 1041 could be used to:

  • Track whether an object is moving, and in which direction
  • Detect the presence of nearby movement or vibration
  • Track the orientation of a stationary object relative to the earth's gravitational pull

Product Specifications

Accelerometer
Acceleration Measurement Max ± 8 g
Acceleration Measurement Resolution 976.7 μg
Accelerometer White Noise σ 2.5 mg
Accelerometer Minimum Drift σ 23.1 μg
Accelerometer Optimal Averaging Period 76 s
Board
Controlled By USB (Mini-USB)
API Object Name Accelerometer
Current Consumption Max 30 mA
Sampling Speed Min 1 s/sample
Sampling Speed Max 1 ms/sample
Sampling Speed Min (Webservice) 1 s/sample
Sampling Speed Max (Webservice) 16 ms/sample
Analog to Digital Converter Resolution 16 bit
USB Voltage Min 4.4 V DC
USB Voltage Max 5.3 V DC
USB Speed Full Speed
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C
