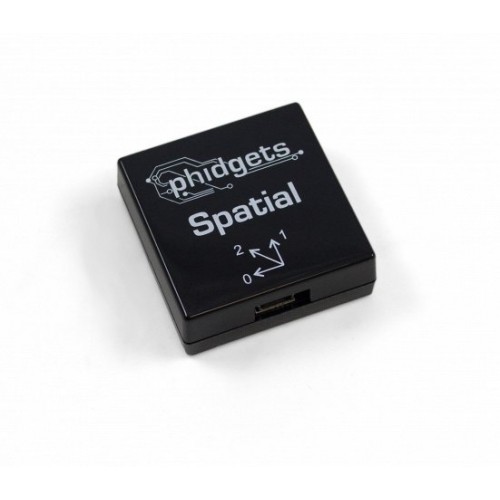

PhidgetSpatial 3/3/3 Basic
Product Code: Phidgets 1042_0B
Description
This spatial board has a 3-axis accelerometer, gyroscope and compass and connects to your computer via USB.
The PhidgetSpatial 3/3/3 combines the functionality of a 3-axis compass, a 3-axis gyroscope, and a 3-axis accelerometer all in one convenient package. It is an inexpensive alternative to the 1044 - PhidgetSpatial Precision 3/3/3, and is ideal for applications where it's more important to know the general motion of an object rather than the precise amounts.
The 1042 could be used to:
- Track whether an object is moving, and in which direction
- Detect the presence of nearby movement or vibration
- Track the orientation of a stationary object relative to the earth's gravitational pull and the direction relative to magnetic north
Use the following program to correct for magnetic errors in your application:
- Graphical Compass Calibration Program (Windows).
- Command Line Compass Calibration Program (Linux, OS X).
Product Specifications
| Accelerometer | |
|---|---|
| Acceleration Measurement Max | ± 8 g |
| Acceleration Measurement Resolution | 976.7 μg |
| Accelerometer White Noise σ | 2.8 mg |
| Accelerometer Minimum Drift σ | 1.9 mg |
| Accelerometer Optimal Averaging Period | 286 s |
| Gyroscope | |
| Gyroscope Speed Max | ± 2000°/s |
| Gyroscope Resolution | 0.07°/s |
| Gyroscope White Noise σ | 0.59°/s |
| Gryoscope Minimum Drift σ | 0.0019°/s |
| Gyroscope Optimal Averaging Period | 8628 s |
| Magnetometer | |
| Magnetic Field Max | 5.5 G |
| Magnetometer Resolution | 3 mG |
| Magnetometer White Noise σ | 1.2 mG |
| Magnetometer Minimum Drift σ | 87 μG |
| Board | |
| Controlled By | USB (Mini-USB) |
| API Object Name | Accelerometer, Gyroscope, Magnetometer |
| Current Consumption Max | 40 mA |
| Sampling Speed Min | 1 s/sample |
| Sampling Speed Max | 4 ms/sample |
| Sampling Speed Min (Webservice) | 1 s/sample |
| Sampling Speed Max (Webservice) | 12 ms/sample |
| USB Voltage Min | 4.4 V DC |
| USB Voltage Max | 5.3 V DC |
| USB Speed | Full Speed |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
