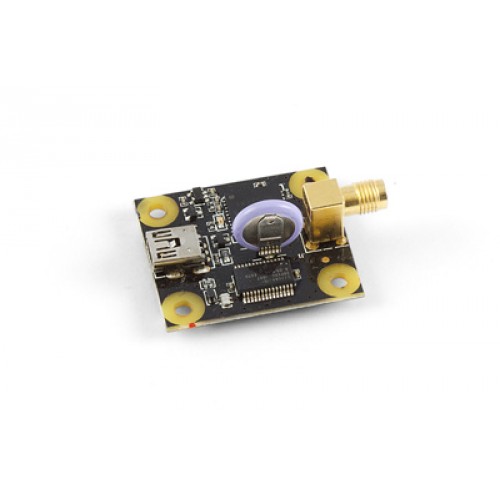

PhidgetGPS
This Product has been replaced by newer version of Phidgets-1040_0B
The Phidget GPS provides the longitude and latitude of the board's position in signed decimal degree format. The position accuracy (best case) is 2.5m CEP (Circular Error of Probability).
The 1040 also provides altitude, heading and velocity as well as the time and date. It will also let you know when it has a satellite fix.
The PhidgetGPS has a 3V rechargeable lithium battery to provide "hot starts" by remembering its previous positions. With a live battery, the 1040 can perform a signal re-acquisition in less than 1 second. The battery provides up to 1 month of operation before having to be recharged. Recharging an empty battery takes 24 hours.
Product Specifications
Board
| API Object Name | GPS |
| Position Data Format | Signed Decimal Degree |
| Circular Error Probable (Best Case) | 2.5 m |
| Velocity Error Max | 100 mm/s |
| Timing Error Max | 300 ns |
| Altitude Max | 18 km |
| Velocity Max | 515 m/s |
| Tracking Sensitivity | -161 dBm |
| Re-acquisition Time (Hot Start) | 1 s |
| Update Rate | 10 samples/s |
Electrical Properties
| USB Voltage Min | 4.4 V DC |
| USB Voltage Max | 5.3 V DC |
| Current Consumption Max | 110 mA |
| Backup Battery Life | 1 months |
| Battery Charge Time | 24 h |
| USB Speed | Full Speed |
Physical Properties
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
