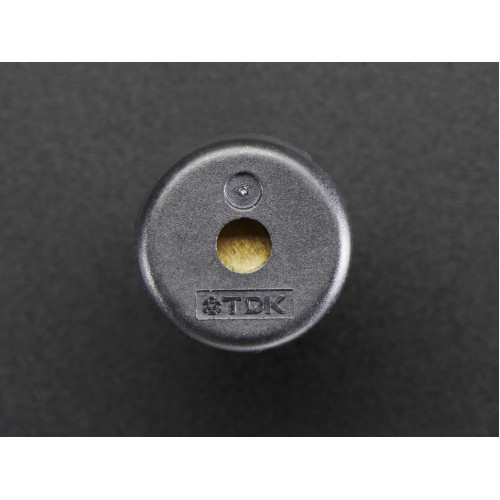

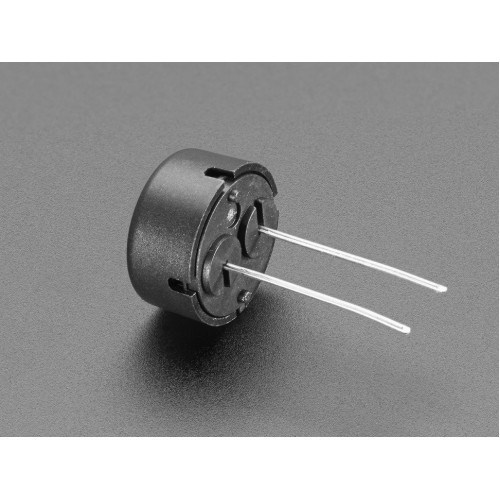

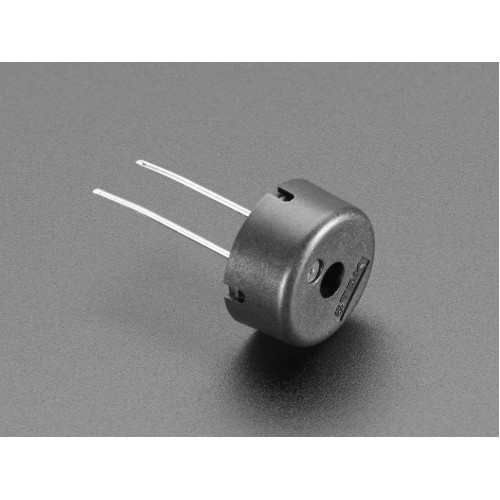

Piezo Buzzer - PS1240

Product Code: Adafruit 160

Piezo Buzzer - PS1240
Piezo Buzzer - PS1240
Piezo Buzzer - PS1240
Piezo Buzzer - PS1240
Brand: Adafruit

₹169.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Piezo buzzers are used for making beeps, tones and alerts. This one is petite but loud! Drive it with 3-30V peak-to-peak square wave. To use, connect one pin to ground (either one) and the other pin to a square wave out from a timer or microcontroller. For the loudest tones, stay around 4 KHz, but works quite well from 2KHz to 10KHz. For extra loudness, you can connect both pins to a microcontroller and swap which pin is high or low ('differential drive') for double the volume.

Technical details

Dimensions:

  • Diameter: 11.90mm/0.47in
  • Height: 6.53mm/0.26in

Downloads

datasheet
