PincherX 100 Robot Arm

Product Code: TR KIT-PINX100

PincherX 100 Robot Arm
PincherX 100 Robot Arm
PincherX 100 Robot Arm
PincherX 100 Robot Arm
PincherX 100 Robot Arm

₹79,299.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

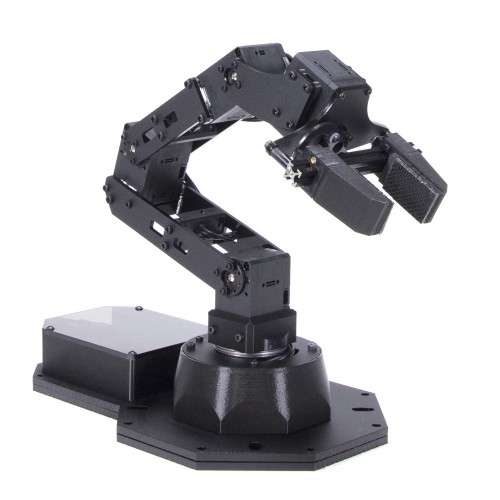

The PincherX 100 Robot Arm belongs to a new family of arms from Interbotix featuring the DYNAMIXEL X-Series Smart Servo Motors. The X-Series actuators offer higher torque, more efficient heat dissipation and better durability all at a smaller form factor over previous DYNAMIXEL servos. The DYNAMIXEL XL430-W250-T servos offer high resolution of 4096 positions and user definable PID parameters. Temperature monitoring, positional feedback, as well as voltage levels, load, and compliance settings are user accessible as well. At the heart of the PincherX 100 is the Robotis Open CM9.04-C open-source controller running on a 32bit ARM Coretex-M3. The PincherX 100 offers 5 degree of freedom and a full 360 degree of rotation.

HIGH PERFORMANCE DYNAMIXEL SERVOS







The PincherX 100 comes fully tested and assembled and is constructed from rigid 1/8" P95 acrylic and heat resistant high strength ABS 3D printed materials. The arm sits on a 7/8" needle roller bearing for added stability. . The electronics are covered with a transparent acrylic shield to keep the electronics free from debris as well as with impact from the arm itself.



3D Print Custom Grippers

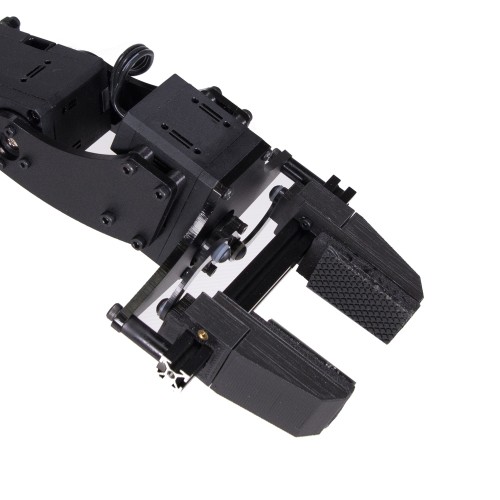

The X-Series gripper carriages are designed for users to quickly and easily change the gripper fingers for different projects. CAD files for the gripper are available for download, if you can design and 3D print, the customization is endless. Included with the arm are sticker backed foam and sorbothane rubber both increase gripping strength while relieving stress on the gripper servo.

CM9.04-C Microcrontroller



CM9.04-C Microcontroller

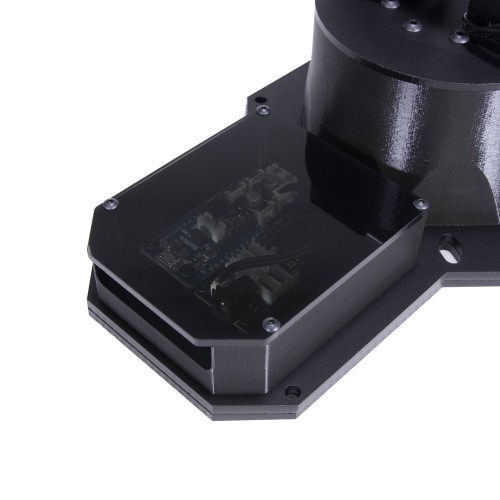

The onboard OpenCM9.04-C can be programmed using the free ROBOTIS OpenCM software, an easy to use Integrated development environment (IDE) based on the Arduino IDE. The OpenbCM9.04-C can be be powered and programmed over USB however servos cannot be powered through the USB connection and must be powered separately.



Specifications

Product Features

  • XL430-W250-T Servos
  • Roller Bearing Base
  • Rigid P95 Acrylic / ABS Construction
  • OpenCM9.04-C for Onboard Processing
  • Gripper with Interchangeable Fingers
  • 4 DOF

Includes:

  • 5x XL430-W250-T Actuators

  • 1x OpenCM9.04-C
  • 1x 12v5a Power Supply
  • 1x USB2 Micro Cable
  • PincherX 100 Hardware & Frames
  • Extra Gripper Foam / Rubber
  • Drivers / Extra Hardware
  • Base Mount Hardware
PincherX 150 Arm
Degrees of Freedom 4
Reach 300mm
Total Span 600mm
Accuracy 5mm
Working Payload 50g
Total Servos 5
Wrist Rotate No





ReactorX 100 Reach

XL430 DYNAMIXEL servos support up to 360 degrees of rotation, which results in an extraordinary range of motion.

360 WORKSPACE











                                       Reach30cm                                                       Span 60cm

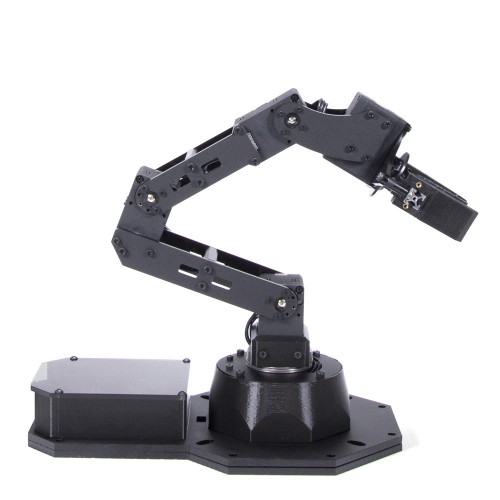

The PincherX 100 Robot Arm has a 30cm horizontal reach from center of the base to gripper with a total span of 60cm. The working payload for the PincherX 100 arm is 50g. Working payload is the weight in which the arm should not exceed under normal working circumstances and is measured by the arm's ability to repeatedly lift an object at roughly half extension without failure. While the PincherX 100 can lift more than 50g, we do not recommend payloads over this number.



Mounting Hardware

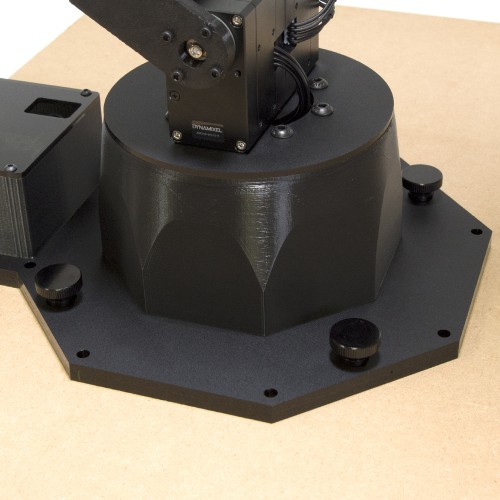

The base comes with mounting holes and thumbscrews / pem nuts to secure the arm easily to most any surface, wood screws are also an option for a more permanent mounting solution.

Mounting Hardware
