Power Shield (Arduino Compatible)

Product Code: DFR0105

Power Shield (Arduino Compatible)
Power Shield (Arduino Compatible)
Power Shield (Arduino Compatible)
Power Shield (Arduino Compatible)
Brand: DF Robot

₹1,629.00
GST inclusive



Qty:

Availability: 2 In Stock


Add to Wish List



INTRODUCTION

Most project of Arduino may need more than two voltage supply. When feed with from 4.5-35V, this power shield able to provide a voltage range from 1.25-12V with 3A peak current. Ideal for servo control and other non-standard components. With this shield, your Arduino now have one power supply for all.

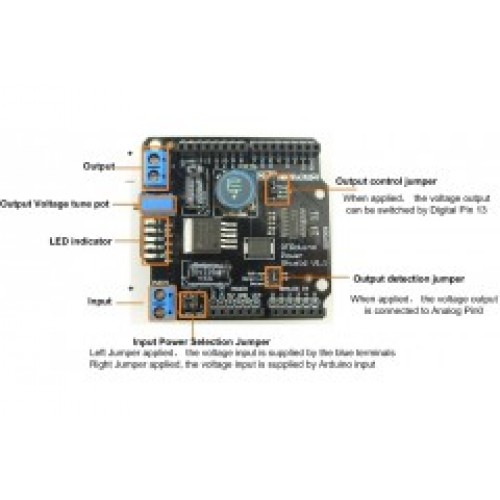

It has be build-in voltage measuring function which mapping the output voltage to Arduino analog pin 0. It can be controlled by Arduino digital Pin13 to switch on/off.

SPECIFICATION

  • Supply voltage:4.5-35V
  • Output voltage:1.25-12V
  • Output current: 2A (3A peak)
  • Max output power: 15W 3A@5V
  • Efficiency:90%

DOCUMENTS

  • Wiki Doc
  • Schematics

SHIPPING LIST

  • Power Shield    x1
