Phidgets Slider 60

Product Code: Phidgets 1112_1

Phidgets Slider 60
Brand: Phidgets

₹1,209.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



Description

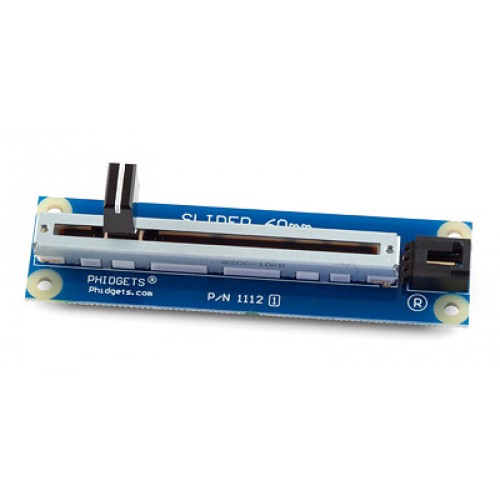

Ideal for user input, this slider has 60mm of travel and connects to an Analog Input or VINT Hub port.

The Slider 60 is a linear potentiometer - the resistance varies linearly with the position of the slider. It outputs a voltage ratio between 0 and 1 that varies linearly over the 60mm of travel. The maximum resistance is 10K ohms.

The 1112 can be used as human input or as position feedback in a system.

Product Specifications

Sensor Properties
Sensor Type Input (Slider)
Controlled By VoltageRatio Input
Sensor Output Type Ratiometric
Linear Travel 60 mm
Electrical Properties
Current Consumption Max 150 μA
Output Impedance 10 kΩ
Physical Properties
Operating Temperature Min -25 °C
Operating Temperature Max 70 °C
