Expansion Board 3.0

Product Code: MGSL10163

Expansion Board 3.0
Expansion Board 3.0
Brand: Pycom

₹2,559.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

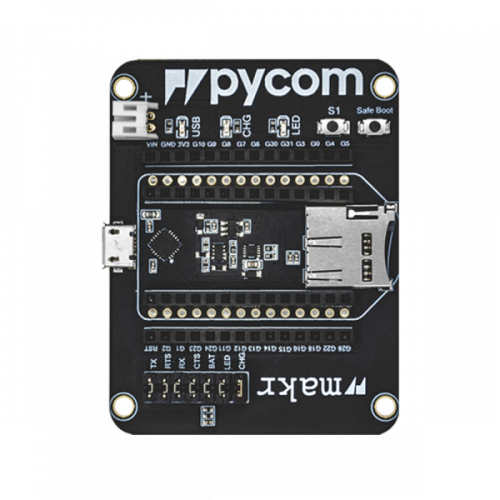

Introducing the Expansion Board 3.0, compatible with the WiPy 2.0, WiPy 3.0, LoPy, LoPy4, SiPy, FiPy and GPy.

NOTE: Does not include the WiPy

Features

  • USB and LiPo battery powered
  • Custom PIC USB to serial converter with automatic bootloader mode
  • LiPo battery charger (BQ24040), with options for two different charging currents (100mA and 450mA)
  • TPS2115A with reverse voltage protection
  • MicroSD card slot
  • JST style battery connector
  • Power LED and charge status LED
  • One user LED and one user switch
  • Button to enter into “safe mode” easily
  • Battery voltage monitoring via the WiPy ADC
  • Lots of jumpers to enable/disable features

Size: 65 x 50 x 8mm
