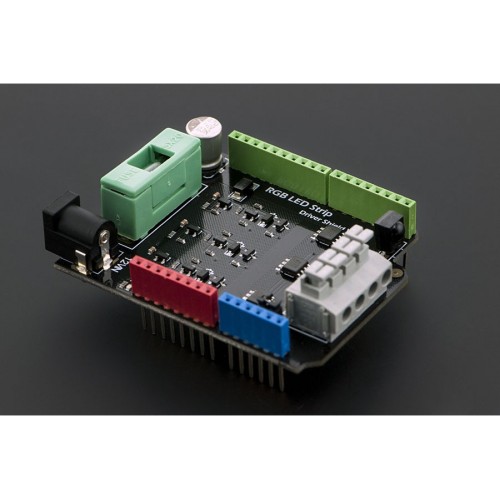

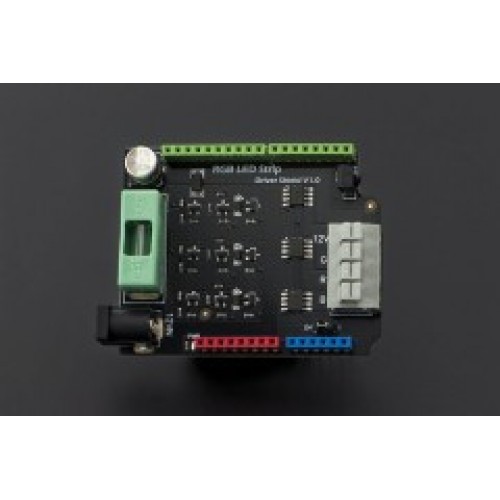

RGB LED Strip Driver Shield v1.0

Product Code: DFR0274

RGB LED Strip Driver Shield v1.0
RGB LED Strip Driver Shield v1.0
RGB LED Strip Driver Shield v1.0
RGB LED Strip Driver Shield v1.0
RGB LED Strip Driver Shield v1.0
Brand: DF Robot

₹1,089.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



INTRODUCTION

Want to program your RGB LED strip to be a bit more "rhythmic" or "unpredictive"? This RGB LED Strip Shield contains all the components you need to build a super cool RGB (or other three channel) LED project with your Arduino.

The shield has 3 outputs with pulse width modulation. Each can control any 12V load, at up to 3A. The shield has build-in IR receiver which allows the LED strip being controlled by an IR remote controller.  A buildin fuse protects the LED strip from over current or any shortage by any reasons. It cares your hard work.

This shield makes it possible to drive about 10 meter length RGB LED Strip with your Arduino processor, which almost require 10Amps(@12V) driving capability.

Note: Recommend to connect a 12v power source to the DC adater on the RGB Strip driver shield, which could powering the Arduino also and protect the system from overcurrent by fuse.

Compatability

  • Arduino UNO R2/R3 or compatible
  • Arduino Mega 1280/2560

SPECIFICATION

  • Compatible with Arduino Uno,Mega,Romeo, etc
  • Compatible with 12V RGB LED Strip(Common Anode)
  • Recommend working power: 72W (2A per way)
  • Limited driving capability: 10 meter RGB LED Strip with max brightness
  • Support IR remote control
  • RGB LED Strip driving pins:
    • D9    -> Blue output
    • D10  -> Red output
    • D11 -> Green output
  • IR Receiver
  • D4  -> IR receiver pin

DOCUMENTS

SHIPPING LIST

  • RGB LED Strip Driver Sheild   x1
