Raspberry Pi PICO

Product Code: SE-RPI-03

Raspberry Pi PICO
Raspberry Pi PICO
Raspberry Pi PICO
Raspberry Pi PICO
Raspberry Pi PICO
Brand: Raspberry Pi

₹399.00
GST inclusive



Qty:

Availability: 4 In Stock


Add to Wish List

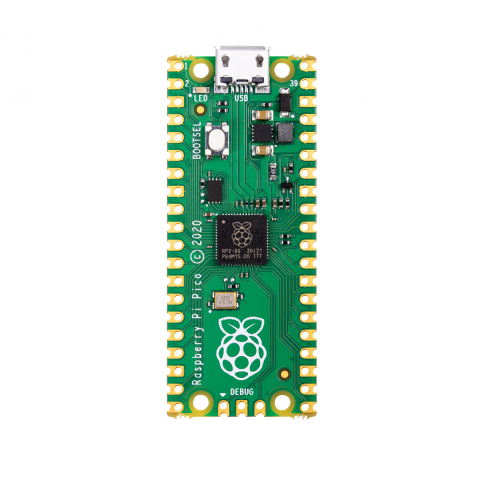

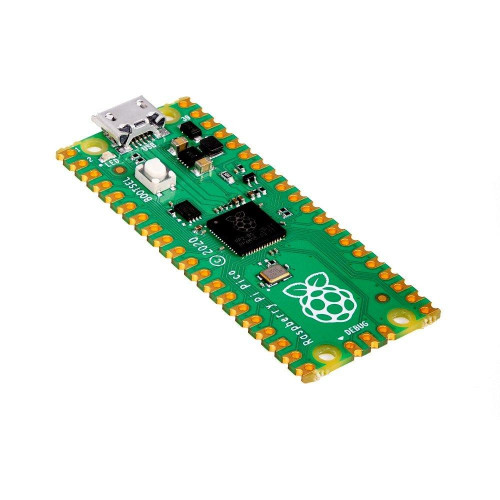

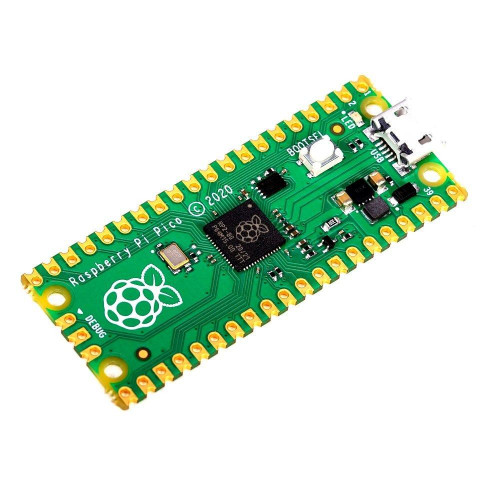

Raspberry Pi Pico is a tiny, fast, and versatile board built using RP2040, a brand new microcontroller chip designed by Raspberry Pi in the UK.

RP2040:

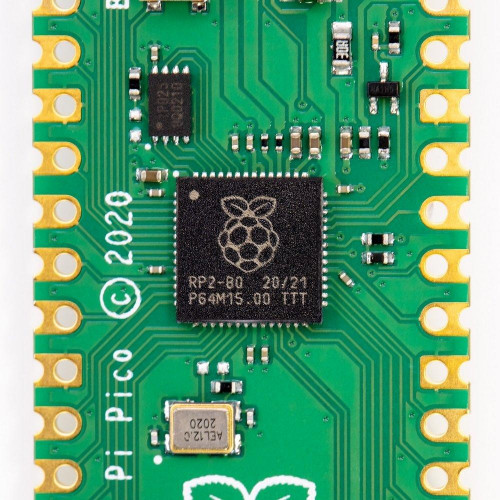

Designed by Raspberry Pi, RP2040 features a dual-core Arm Cortex-M0+ processor with 264KB internal RAM and support for up to 16MB of off-chip Flash. A wide range of flexible I/O options includes I2C, SPI, and — uniquely — Programmable I/O (PIO). These support endless possible applications for this small and affordable package.

For beginners, for experts:

From controlling appliances to operating a light display, Raspberry Pi Pico puts the technology that underpins countless everyday operations into your hands.

Programmable in C and MicroPython, Pico is adaptable to a vast range of applications and skill levels, and getting started is as easy as dragging and dropping a file.

More experienced users can take advantage of Raspberry Pi Pico’s rich peripheral set, including SPI, I2C, and eight Programmable I/O (PIO) state machines for custom peripheral support.

Features:

  1. RP2040 microcontroller chip designed by Raspberry Pi
  2. Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
  3. 264KB of SRAM, and 2MB of onboard Flash memory
  4. The castellated module allows soldering directly to carrier boards
  5. USB 1.1 with device and host support
  6. Low-power sleep and dormant modes
  7. Drag-and-drop programming using mass storage over USB

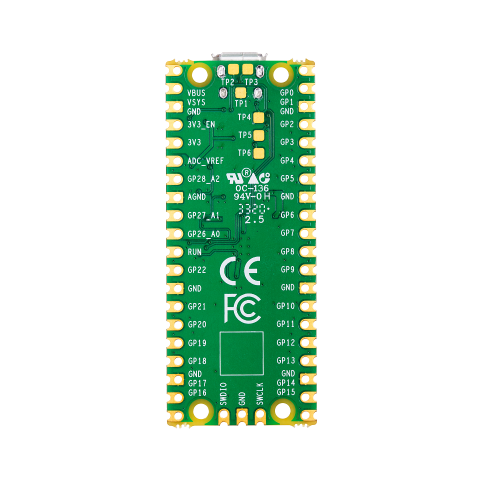

  8. 26 × multi-function GPIO pins
  9. 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
  10. Accurate clock and timer on-chip
  11. Onboard temperature sensor
  12. Accelerated floating-point libraries on-chip
  13. 8 × Programmable I/O (PIO) state machines for custom peripheral support
For more technical details go through Datasheet in attachments

Specifications:

Model

Raspberry Pi PICO

Operating Voltage (VDC)

1.8 ~ 5.5

Processor

RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi

Interface

2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels

RAM

264 KB

GPIO

26 Pins

Clock Speed

133 MHz

On Board Ports

Micro-USB 5V/2.5A DC Power Input Port

Operating Temperature Range (°C)

-20 to 85

Length (mm)

51

Width (mm)

21

Height (mm)

4

  • Castellated module allows soldering direct to carrier boards
  • Drag-and-drop programming using mass storage over USB

  • Low-power sleep and dormant modes

  • Accurate on-chip clock

  • Temperature sensor

  • Accelerated integer and floating-point libraries on-chip

Data Sheet:
