RedBot Mainboard

Product Code: SFE ROB-11954

RedBot Mainboard
RedBot Mainboard
RedBot Mainboard

₹4,999.00
GST inclusive



Qty:

Availability: 2 In Stock


Add to Wish List



Description

The next rev of the RedBot Mainboard has received a few improvements to the silkscreen and has an added button connected to pin 12, go check it out. This page is for reference only.

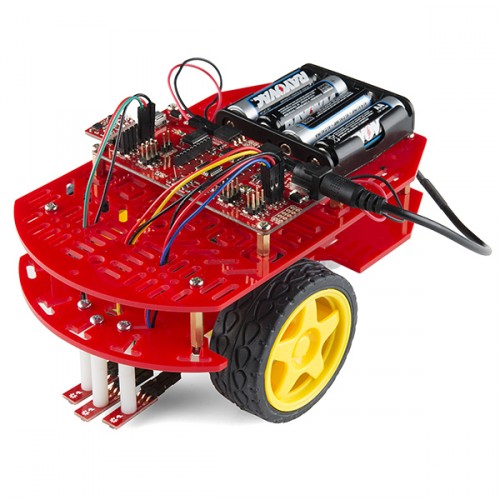

The RedBot Mainboard is a robotic development platform that works with the Arduino IDE. The RedBot is a motor driver and Ardiuno combination with various headers and connections, eliminating the need to stack multiple shields. By using the RedBot accessory boards and your own chassis, you can design a robot to suit your needs.

The RedBot comes pre-programmed with the Optiboot (Uno) bootloader. By simply connecting a USB mini-B cable, you can program it in the Arduino IDE using our example code, or your own. The optional add-on sensors attach to the main board via 6-pin headers or jumper cables to increase capabilities.

Features:

  • 5V Logic
  • 6-9V Input Voltage via Barrel Jack or 2-Pin Header
  • ATmega328P (pre-programmed)
  • TB6612FNG Dual DC Motor Driver
  • USB Programmable via FTDI
  • XBee Port with HW/SW Serial Switch
  • 2x 3-Pin Female Motor Port
  • 2x 6-Pin Male Optional Servo Header
  • 4x 6-Pin Male Optional Sensor Header
