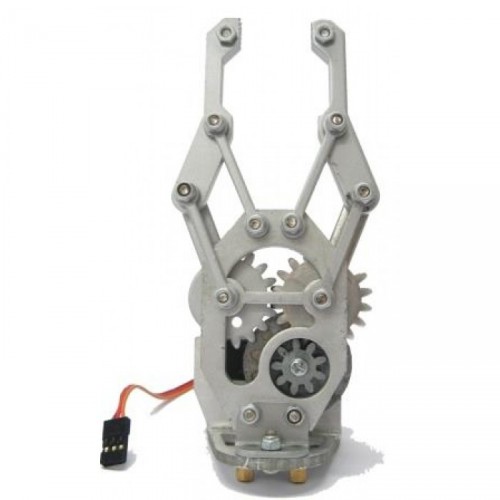

MKII Robotic Claw with Servo

Product Code: Dagu-Rs026

MKII Robotic Claw with Servo

₹3,669.00
GST inclusive



Qty:

Availability: Discontinued


Add to Wish List



The MKII Robotic Claw comes pre-assembled and is the classic claw- heavy duty and made from metal.

Features

MKII Robotic Claw by DAGU

  • Brass sleeves in joints
  • Can pick up heavy objects
  • Spring-loaded clutch
  • 2:1 gearing
  • Light weight servo motor

Description

The brass sleeves in joints make them rigid and hence are less likely to come loose. The weight of objects that the claw can pick up depends on the servo motor used.

The spring-loaded clutch of the claw helps protect servo gear train while providing spring tension for gripping objects while the 2:1 gearing increases gripping torque while utilizing the full 180° travel of the servo.

The mounting plate on the bottom accepts standard spacing found on servo mounts.

The 20 gram DGServo S05NF STD servo motor, included with this claw, has metal gears, and a stall torque of 2.8kg*cm at 4.8V and 3.2kg*cm at 6V. It also has a speed of 0.2sec/60° at 4.8V and 0.18sec/60° at 6V

If your gripper does not close properly then you may need to take the pinion gear back
out and rotate it by one tooth. Check out the Assembly instructions on how to do this properly.

Downloads

Assembly instructions and Code for MKII [PDF Link]

MKII Robotic Claw [Video Link]

Possible Application Areas

This claw can be used in applications where a mobile robot is required to carry objects from one place to another, commonly known as pick-and-place applications.
