DSS-M15S is a heavy-duty metal gear standard servo with 270°wide angle, high torque power, improved stability and durability.
Able to take in 6V and deliver a strong torque power of over 15Kg, this tough 270°servo will never let you down when you need it. Tested with high load capacity for 12 hours long, this DSS-M15S servo demonstrates a maximum torque of 18Kg without much vibration or heat.
In addition, we enclose carefully selected steering parts, including an aluminum alloy wheel and a long bracket, to enhance servo performance.
- Voltage: 4.8-7.2 Volts
- Torque: 13.5Kg*cm/15Kg*cm (6.0V/7.0V)
- Speed: 0.18 sec/60°/0.16 sec/60° (6.0V/7.0V)
- Free Run Current: 80mA/100mA (6.0V/7.0V)
- Stall Current: 1.8A/2A (6.0V/7.0V)
- Standby Current: 4mA/5mA (6.0V/7.0V)
- Rotation: 270°
- Wheel Gear: Metal
- Gear Ratio: 310:1
- Dimension: 54.5*20*47.5mm(2.15*0.79*1.87")
- Signal: RC PWM
- Pulse Range: 500-2500 us
- Frequency: 50-330Hz（Arduion-compatible）
- DSS-M15S Servo x1

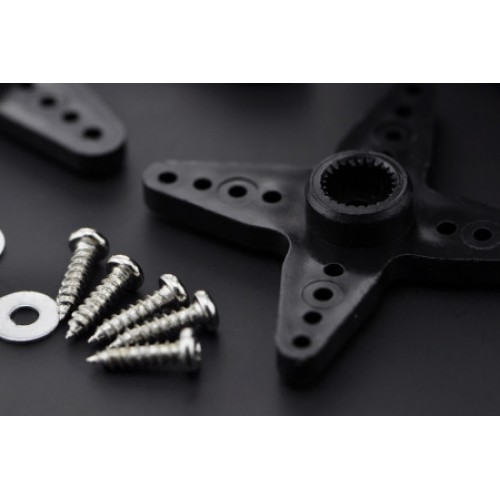

- Metal round servo horn x1
- X servo horn x1
- long straight servo horn x1
- Straight servo horn x1
- M2*8 self tapping screw x5
- M2 screw washer x5
- M3*6 screw x1
