BeagleBone Green

Product Code: Seeed 102010027

BeagleBone Green
BeagleBone Green
BeagleBone Green
BeagleBone Green
Brand: Seeedstudio

Call Us
GST inclusive


Availability: Backorder

Add to Wish List

(Jason Krinder of announced SeeedStudio BeagleBone Green at Bay Area Maker Faire, the latest version has removed the battery backed up Real Time Clock (RTC).)

One of Seeed Studio’s motto is “Grow the Difference”, which has now become part of the culture of the company. This is not just reflected from what we are doing in popularizing open source culture, but also from our products. Ever since the company funded, we are continuously creating our own open platform to differentiate from the existing one such as Seeeduino vs Arduino. This time we would like to introduce a new member of those unique products----Beaglebone Green.

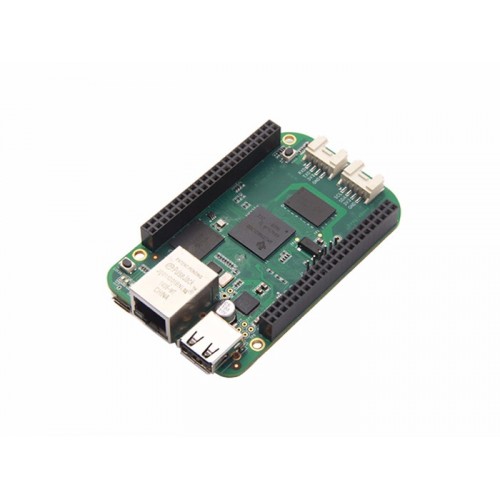

Beaglebone Green (Short as BBG) is a joint effort by and Seeed Studio and it was derived from Beaglebone Black (Short as BBB). If you ever heard of BBB, you may know that BBB was the most popular board in the Beaglebone board family. It is much cheaper than previous version while inherits all the good features of Beaglebone. BBG is better than BBB, we have kept almost all the good features of BBB such as the tiny size, abundant interface and strong expansibility, while at the same changed it a bit to make it more powerful.


The main change is replacing the HDMI interface with 2 grove connectors. Grove is a great invention by Seeed, it is a modular standardized connector prototyping system by which you are able to build applications without soldering and jump wires. With the rapid development of the grove system, more and more sensors, actuators, displays are joining in the grove family, all of them are integrated the standard grove connector, so that you can connect the BBG to them with a simple cable. So far we have produced more than 30 groves that work well with BBG, and the number is increasing. Apart from that, we also changed the 5V barrel to be micro USB host, so that you can power the board more conveniently.


  • Please click here to see the full grove list that compatible with BBG.

  • Grove - RTC is not compatible with Beaglebone Green as it requires 5V.

Despite of the changes we made, BBG is still fully compatible with BBB and applied with all the BBB capes. Even though BBG has all these advantages, we did not increase the price, actually the price of BBG is much cheaper, it may be the most low-cost Beaglebone in history. What we want is to provide a Beaglebone that is not only more powerful and easy-to-use but also reachable to most people. Please don’t hesitate to choose BBG if you need a Beaglebone for your project, I am sure you will like it.

Hardware Overview


BeagleBone Black VS BeagleBone Green

Check the Compatible License from

                      BeagleBone Black (BBB)

                               MSRP: USD 55

                SeeedStudio BeagleBone Green (BBG)

                                      MSRP: USD 39

    • Processor: AM3358 1GHz ARM® Cortex-A8     • Processor: AM3358 1GHz ARM® Cortex-A8
    • 512MB DDR3 RAM     • 512MB DDR3 RAM
    • 4GB 8-bit eMMC on-board flash storage     • 4GB 8-bit eMMC on-board flash storage
    • 3D graphics accelerator     • 3D graphics accelerator
    • NEON floating-point accelerator     • NEON floating-point accelerator
    • 2x PRU 32-bit microcontrollers     • 2x PRU 32-bit microcontrollers
    • USB client for power & communications     • USB client for power & communications
    • USB host     • USB host
    • Ethernet     • Ethernet
    • 2x46 pin headers     • 2x46 pin headers
    • HDMI port     • 2x Grove connectors

** SeeedStudio BeagleBone Green is both CE and FCC certified.

Technical Details

Dimensions 126mm x 76mm x 24mm
Battery Exclude
CE and FCC certified.


  • SeeedStudio BeagleBone Green x 1

  • USB Cable x 1

  • User Guide x 1
