Grove - Optical Rotary Encoder(TCUT1600X01)

Product Code: Seeed 101020587

Grove - Optical Rotary Encoder(TCUT1600X01)
Grove - Optical Rotary Encoder(TCUT1600X01)
Grove - Optical Rotary Encoder(TCUT1600X01)
Grove - Optical Rotary Encoder(TCUT1600X01)
Brand: Seeedstudio

₹979.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



The Grove - Optical Rotary Encoder(TCUT1600X01) is a transmissive sensor that includes an infrared emitter and two phototransistor detectors. Usually, the infrared emitter emits infrared rays, the phototransistor detectors receives the infrared rays, then the phototransistor is turned on, both of the output is High, the on-board LED indicators light up. When there is an obstacle blocking, the phototransistor can not receive the infrared rays, so the phototransistor will be turned off and both of the output will be Low, the on-board LED indicators fade away.

You can use this sensor as a rotary encoder to detect the speed or rotation, and thanks to the two phototransistor detectors, you even can detect the rotation direction.

Features

  • Double phototransistor detectors, can determine the direction of rotation

  • On-board LED indicators

  • Grove Interface, easy to use

Typical Applications

  • Automotive optical sensors

  • Accurate position sensor for encoder

  • Sensor for motion, speed, and direction

  • Sensor for “turn and push” encoding

Pin Map

Technical Details

Dimensions 40mm x 20mm x 10mm
Battery Exclude
Operating Voltage 3.3V / 5V
Operating Temperature Range 40°C to +105°C
Storage Temperature Range -40°C to +125°C
Emitter Wavelength 950 nm
Gap 3 mm
Interface Digital

Part List

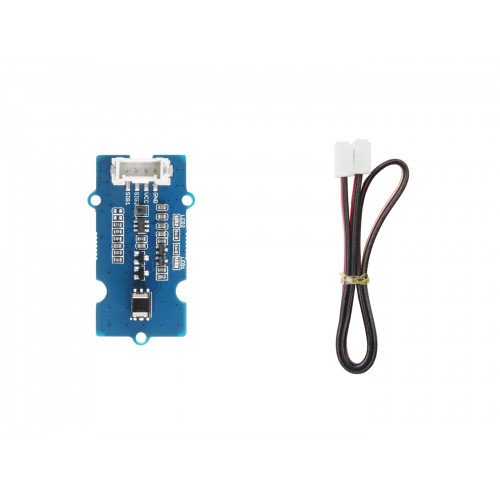

Grove - Optical Rotary Encoder(TCUT1600X01) 1
Grove Cable 1
