Camera Shield

Product Code: Seeed 103990057

Camera Shield
Camera Shield
Camera Shield
Camera Shield
Brand: Seeedstudio

GST inclusive


Availability: 1 In Stock

Add to Wish List

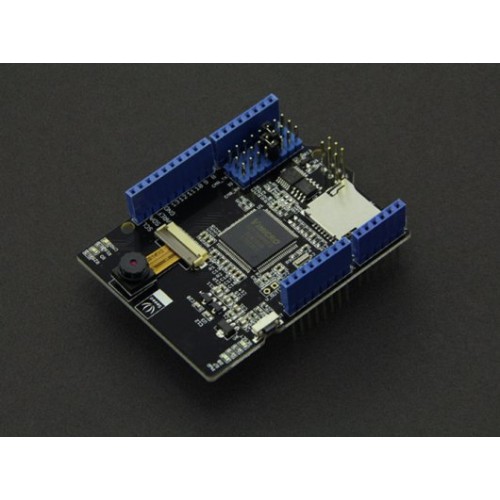

Camera Shield is the first shield board that support photograph, it is based on the solution of VC0706 + OV7725, the former is a high performance camera processor with enhanced image processing functions and it embedded the hard-wired JPEG codec, and the latter is a high-performance 1/4 inch, single-chip VGA camera and image processor in a small footprint package. There is a library to control the Camera Shield via UART/SPI, which makes it possible to take picture easily by your Arduino board. Come on and use it to take a photo!


·         Fully Compatible with Arduino or Seeeduino

·         High Speed Serial Bus Control: UART/SPI

·         Integrated MicroSD card Interface


·         Still Picture Resolution: (640x480) JPEG Output

·         Power Supply: 5 V 100mA

Technical Details

Dimensions 115mm x 75mm x 25mm
Battery Exclude
