Contact - Less Infrared Thermopile Sensor Breakout - TMP006

Product Code: Adafruit 1296

Contact - Less Infrared Thermopile Sensor Breakout - TMP006
Contact - Less Infrared Thermopile Sensor Breakout - TMP006
Brand: Adafruit

₹1,099.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



DESCRIPTION

Unlike all the other temperature sensors we have, this breakout has a really cool IR sensor from TI that can measure the temperature of an object without touching it! Simply point the sensor towards what you want to measure and it will detect the temperature by absorbing IR waves emitted. The embedded thermopile sensor generates a very very small voltage depending on how much IR there is, and using some math, that micro voltage can be used to calculate the temperature. It also takes the measurement over an area so it can be handy for determining the average temperature of something.

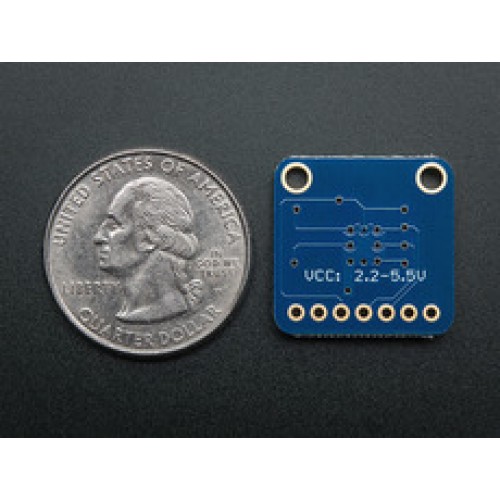

This sensor comes as an ultra-small 0.5mm pitch BGA, too hard to solder by hand. So we stuck it on an easy-to-work-with breakout board. The sensor works with 3 to 5V logic so it requires no logic level shifting. There are two address pins and using a funky method of connecting the pins you can have up to 8 TMP006's connected to one i2c bus (see the datasheet table 1 for the connections). We also include a small piece of 0.1" breakaway header so you can easily solder to and use this sensor on a breadboard. Two mounting holes make it easy to attach to an enclosure.

TECHNICAL DETAILS



  • Dimensions (without headers):Length: 20mm/0.8in, Width: 20mm/0.8in
  • This board/chip uses I2C 7-bit addresses between 0x40-0x47, selectable with jumpers.
  • TMP006 Datasheet
  • TMP006 userguide
