SiK Telemetry Radio V3

Product Code: Holybro 17013

SiK Telemetry Radio V3
SiK Telemetry Radio V3
Brand: Holybro

₹7,549.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List

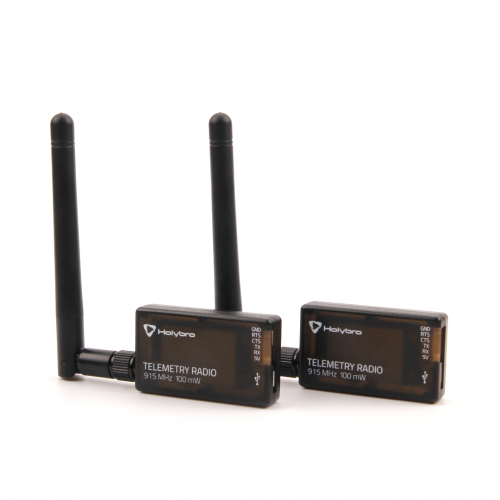

Overview :  This Holybro SiK Telemetry Radio is a small, light and inexpensive open source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometres with the use of a patch antenna on the ground).
This radio is plug-n-play all Pixhawk Standard and other Flight Controller, providing the easiest ways to setup a telemetry connection between your Autopilot and a ground station. It uses open source firmware which has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, PX4 Autopilot.

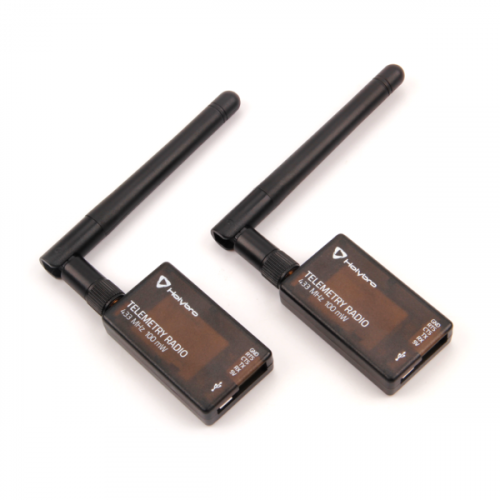

The radios can be either 915Mhz or 433Mhz and you should purchase the model which is appropriate for your country/region.

Features :

Open-source SIK firmware
Plug-n-play for Pixhawk Standard Flight Controllers
Easiest way to connect your Autopilot and Ground Station
Interchangeable air and ground radio
Micro-USB port (Type-C Adapter Cable Included)
6-position JST-GH connecto

Specification
100 mW maximum output power (adjustable) -117 dBm receive sensitivity
RP-SMA connector
2-way full-duplex communication through adaptive TDM UART interface
Transparent serial link
MAVLink protocol framing
Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle
Error correction corrects up to 25% of bit errors Open-source SIK firmware
Configurable through Mission Planner & APM Planner
FT231X is a USB to BASIC UART IC

Dimensions : 28 x 53 x 10.7mm (without antenna)
Electrical Data :
Supply voltage: 5V DC (from USB or JST-GH)
Transmit current: 100 mA at 20dBm
Receive current: 25 mA
Serial interface: 3.3 V UART

FCC IDENTIFIER : 2AP22-HT03-V3
Package Included :
Radio modules with antennas *2
Micro-USB to USB-A cable *1
Micro-USB to Micro-USB OTG adapter cable *1
Micro USB to Type C Adapter
JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)

Manual:

https://docs.holybro.com/telemetry-radio/sik-telemetry-radio-v3
