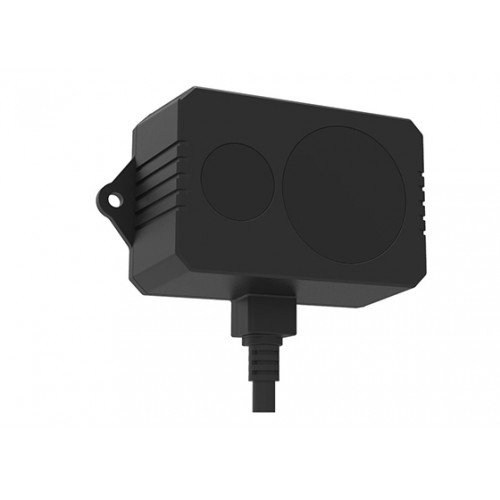

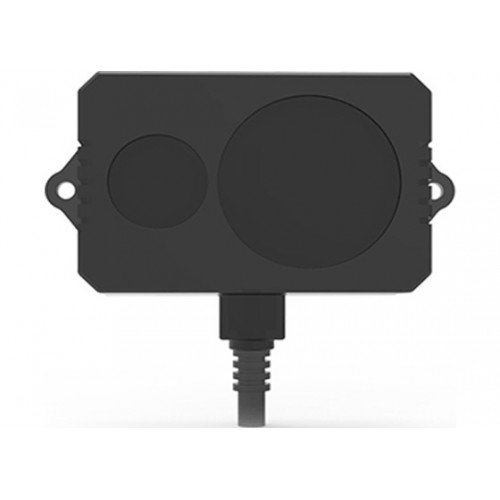

TF02 LiDAR(Mid-range distance sensor)

Product Code: TF02

TF02 LiDAR(Mid-range distance sensor)
TF02 LiDAR(Mid-range distance sensor)
Brand: Benewake

₹8,839.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



TF02 Lidar is a newly developed product based on the widespread application experience of TF01. It possesses a higher performance and is applicable to more fields. On the basis of preserving multiple advantages from the last generation, TF02 highly upgraded the energy system, product structure, fusion algorithm, and shell material to achieve 22m detecting range and offer a more stable output result.

Longer,  Stable, and Reliable
The optimal range can be up to 22 m. With the high frame rate real-time measurement, TF02 possesses impeccable data processing algorithms, offering more stable and reliable results for detection.

High Strength Housing
The innovative production process and hardware optimizations make its enclosure level reach IP65. The integrated structure makes its body more powerful and unbreakable, which highly enhances its anti-corrosive feature.

Fusion Algorithm and High Reliability
Based on the ToF (Time of Flight) principle, the product can work under 100k Lux high light outdoors. With our special optical system design and fusion algorithm, the product can resist disturbance from ambient light, airflow, and electrons, resulting high data reliability.

Graphical Operation and Remote Upgrade
Concise upper computer operation interfaces integrate multiple functions, such as data displaying, downloading, and Baud rate adjusting, so as to make it more user-friendly. The new Bootloader function allows users to upgrade product firmware online remotely.

Specification

Operating Range 0.4-22m
Frame Rate 100Hz
Enclosure Rating IP65
Weight 52g
FOV
Communication Interface UART/CAN

Application

Industrial Safety Distance Warning - Tower Crane

There is no small matter in the field of industry, with 10k Hz frequency and customized measuring range, Benewake LiDAR could warn in safety distance and trigger alarm system to decrease accident rate in all kinds of industrial environment. Now Benewake LiDAR has been applied all kinds of tower crane devices in large number and safety distance alarm has been realized.

collision avoidance of gate bar

TFmini Series, with full intellectual property of Benewake, provide high accuracy solution with mass market prices. They can cooperate with existing systems to achieve functions such as collision avoidance, LPR (License Plate Recognition) trigger, and parking charging etc.

Industrial Robot

People have higher safety requirement for robots as they are increasingly applied. This is particularly true for their safety performance. And robots are becoming more intelligent with the advancement of technology. Safety is primary concern in human-machine interaction. Robot is tested for any collision with human for safety to maximize protection of human and allow robot to identify human presence. In this way, robot will stop work in progress when necessary in protection of human.

Perimeter Security

Perimeter security means guarding around the building. The traditional method by leaving some screen and blocks and patrolling by people is not adaptable to current security demands, Benewake LiDAR can be applied in factory, bank, prison and some other environment by the features of difficult to influenced by environment.
