Tallysman Multi-GNSS Antenna

Product Code: EM-ANT103

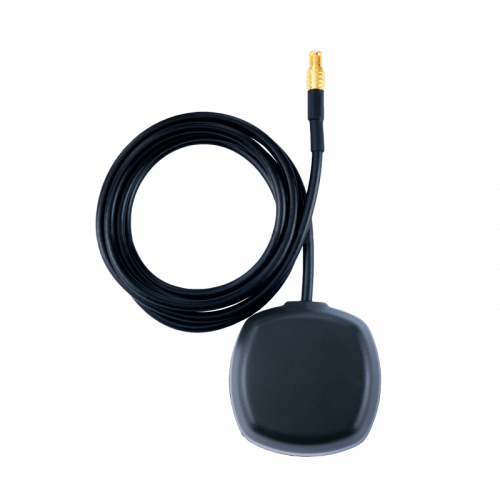

Tallysman Multi-GNSS Antenna
Brand: Emlid

₹7,739.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Tallysman TW4721 is a compact, wideband Accutenna™ technology GNSS antenna that provides accurate reception for all upper L- band GPS, GLONASS, Beidou, and Galileo signals (L1, G1, B1, B1 BOC, B12, E1) and associated augmentation signals (WAAS, EGNOS and MSAS SBAS).

Benefits

  • Superior multipath signal rejection
  • Great out-of-band signal rejection
  • Excellent signal-to-noise ratio
  • Consistent response in all op. temperatures

Specification

Mechanical

  • Architecture: Dual, quadrature feeds
  • Size: 38 x 38 x 14 mm
  • Attachment Method: Adhesive



Electrical

  • LNA Gain: 26 dB min
  • Supply Current: 10 mA typ. 15 mA max.
  • Supply Voltage: 1.8 to 16 VDC nominal
  • Noise: 1 dB typ.
