Triple Output High Power RGB LED

Product Code: SFE COM-08718

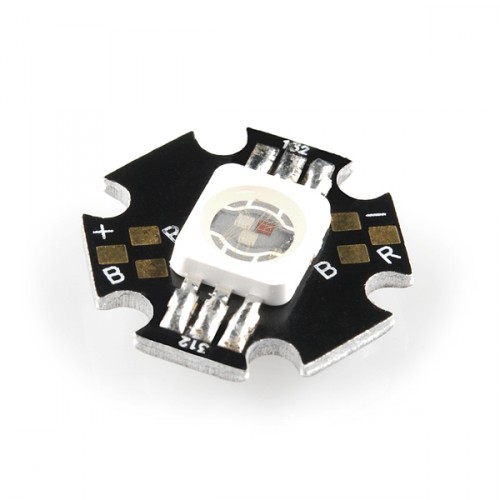

Triple Output High Power RGB LED

₹1,799.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



Description

Do not look into the light. You know you want to, but boy will you be sorry. 1W per channel, RGB High Power LEDs in one aluminum backed package. These LEDs will blow you away. Light them up then put a coffee cup over the LED to keep your eyes from seeing dots in the periphery. With all three LEDs at 350mA per channel (3W total output), you will need additional heat sinking.

Features:

  • Viewing angle: 140-150degrees
  • Red: (620-630nm) / 30-40LM
  • Green: (520-525nm) / 40-50LM
  • Blue: (455-465nm) / 10-15LM

Forward Voltage:

  • Red: 2.2-2.6V
  • Green: 3.2-3.8V
  • Blue: 3.2-3.8V
