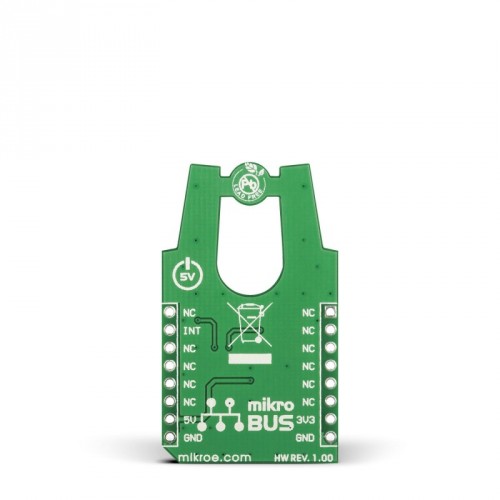

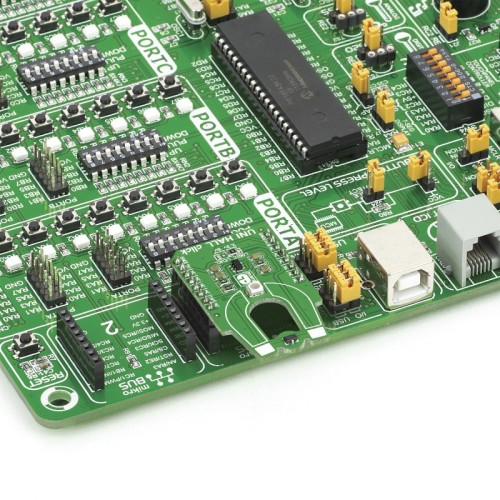

UNI HALL click is a simple solution for adding an unipolar Hall switch to your design. It carries the Melexis US5881 unipolar Hall-effect switch and a 74LVC1T45 single bit, dual supply translating transceiver. The unipolar Hall effect sensor on UNI HALL click is sensitive to north pole magnetic fields—when exposed to such a field, it outputs a LOW logic level. Otherwise the output is a HIGH logic level. It can be employed in a wide variety of scenarios—anywhere where a magnet can be used to infer speed, position, or other properties of the target object. UNI HALL click communicates with the target board through the mikroBUS INT line. It's designed to use either a 3.3V or a 5V power supply.
|Applications||Contactless proximity switch, Liquid level detector and alarm (with a magnet attached to a float), speedometor (inferred from RPM of a rotating wheel) and so on|
|On-board modules||Melexis US5881 unipolar Hall-effect switch and a 74LVC1T45 single bit, dual supply translating transceiver|
|Key Features||Hysteresis prevents output oscillation near switching point|
|Key Benefits||Hall switches are rugged, resistant to dirt and other contaminants|
|Input Voltage||3.3V or 5V|
|Click board size||M (42.9 x 25.4 mm)|
