UV 3 click

Product Code: MIKROE-2736

UV 3 click
UV 3 click
UV 3 click
UV 3 click

₹949.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

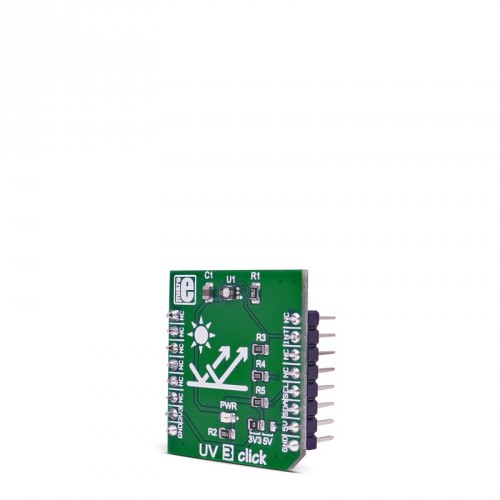

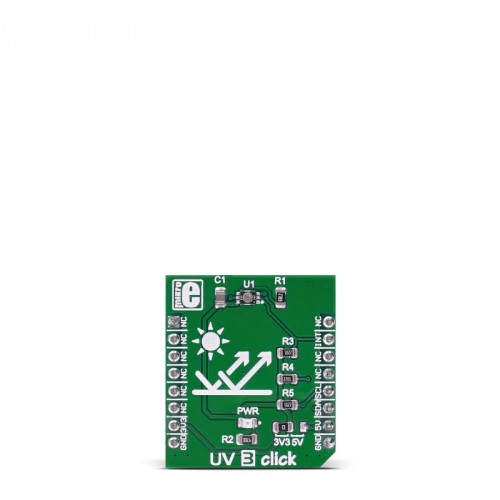

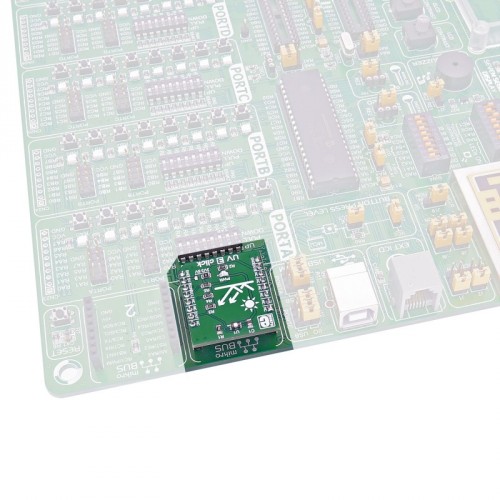

UV 3 click is an advanced ultraviolet (UV) light sensor with I2C protocol interface. The click carries VEML6070 UVA light sensor designed by the CMOS process. UV 3 click runs on either 3.3V or 5V power supply.

VEML6070 sensor features

VEML6070 is an advanced ultraviolet (UV) light sensor with I2C protocol interface and designed by the CMOS process. The active acknowledge (ACK) feature with threshold windows setting allows the UV sensor to send out a UVI alert message.

VEML6070 incorporates a photodiode, amplifiers, and analog/digital circuits into a single chip. VEML6070’s adoption of Filtron™ UV technology provides the best spectral sensitivity to cover UV spectrum sensing. It has an excellent temperature compensation and a robust refresh rate setting that does not use an external RC low pass filter. VEML6070 has linear sensitivity to solar UV light and is easily adjusted by an external resistor.

Specifications

Type Optical
On-board modules VEML6070 UVA light sensor
Key Features Converts solar UV light intensity to digital data, excellent performance of UV radiation measurement under long time solar UV exposure
Key Benefits Excellent UV sensitivity and linearity via Filtron™ technology
Interface I2C
Input Voltage 3.3V or 5V
Click board size S (28.6 x 25.4 mm)

Pinout diagram

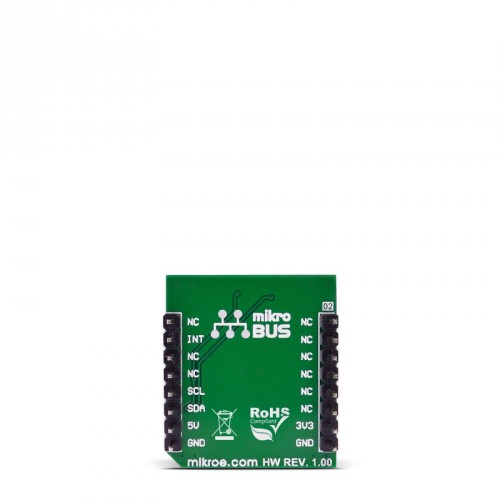

This table shows how the pinout on UV 3 click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes Pin Mikrobus logo.png Pin Notes
  NC 1 AN PWM 16 NC
  NC 2 RST INT 15 ACK Acknowledge pin
  NC 3 CS TX 14 NC
  NC 4 SCK RX 13 NC
  NC 5 MISO SCL 12 SCL I2C digital serial clock input
  NC 6 MOSI SDA 11 SDA I2C digital serial data output
Power supply +3.3V 7 3.3V 5V 10 +5V Power supply
Ground GND 8 GND GND 9 GND Ground

Jumpers and settings

Designator Name Default Position Default Option Description
JP1 Logic level Left 3.3V Data in level Voltage Selection 3V3/5V, left position 3V3, right position 5V

Programming

Code examples for UV 3 click, written for MikroElektronika hardware and compilers are available on Libstock.

Code snippet

This code reads the value of UV light from VEML6070 and sends it to the user via UART.


01 char uartTxt [20];
02
03 void systemInit()
04 {
05     Uart5_Init (9600);
06     Uart5_Write_Text ("rnInitializing...");
07     I2C2_Init( 100000 );
08     Delay_ms (100);
09     UV_3_initDriver (0x70,I2C2_Start, I2C2_Stop, I2C2_Write, I2C2_Read);
10     VEML6070_Init();
11     Uart5_Write_Text ("rnInitialized");
12 }
13
14 void main()
15 {
16     systemInit();
17
18    while( 1 )
19     {
20           Uart5_Write_Text ("rnUV value: ");
21           IntToStr (UV_3_read(), uartTxt);
22           Uart5_Write_Text (uartTxt);
23           Delay_ms (750);
24     }
25 }

Downloads

 mikroBUS™ Standard specification
 UV 3 click schematic
 VEML6070 datasheet
 LibStock: UV 3 click library
