Product Code: MIKROE-1927

Vibra sense click
Vibra sense click
Vibra sense click
Vibra sense click

₹1,889.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



Description

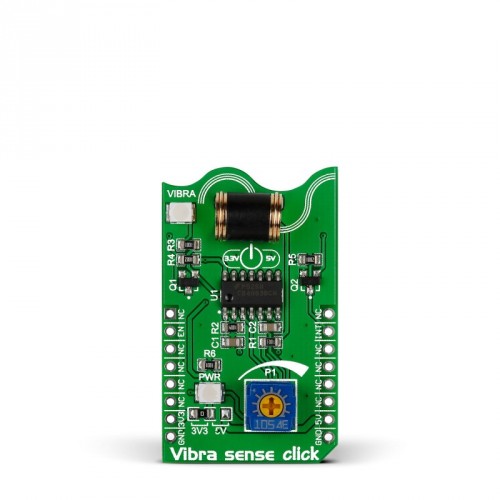

Vibra Sense click is a low cost micro shock vibration sensor with a digital output which can be set as an Interrupt (mikroBUS INT pin) An onboard potentiometer lets you set the interrupt threshold. An additional Enable line (EN) is in place of the mikroBUS pin. It’s a very simple and effective solution for detecting vibrations. The sensing unit consists of a round housing in which a spring is coiled around a metal pin. When exposed to vibration, the spring contacts the pin and closes the switch. The board is designed to use either a 3.3V and a 5V power supply.

Specification

Type Motion
Applications Vibra sense click is a suitable solution for designers who are developing anti-tampering, anti-theft devices, especially if cost efficiency is among the primary requirements
On-board modules micro shock vibration sensor
Key Features Calibration potentiometer. Vibration sensor. Digital output, configurable as an interupt
Key Benefits Digital output can be set as an Interrupt
Interface GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)

Downloads

 Vibra sense click user manual

 Vibra sense click example
