800x600, 4.3inch e-Paper UART Module

Product Code: Waveshare 10628

800x600, 4.3inch e-Paper UART Module
800x600, 4.3inch e-Paper UART Module
800x600, 4.3inch e-Paper UART Module
800x600, 4.3inch e-Paper UART Module
800x600, 4.3inch e-Paper UART Module

₹6,929.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



Overview

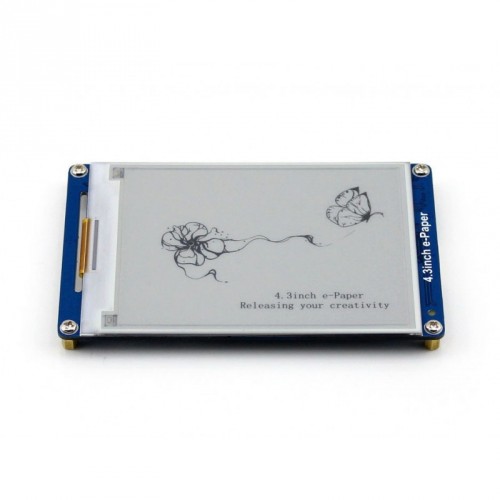

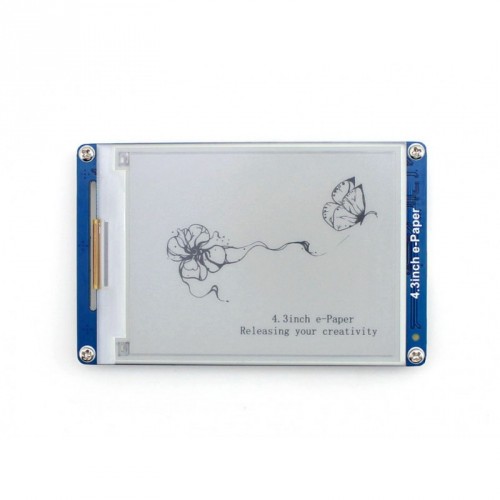

This is a serial interface E-Ink display module, 4.3inch, 800×600 resolution, with embedded font libraries, ultra low power consumption.

You don't have to know anything about the complex underlying details of e-Paper, nor the specific algorithms of displaying graphics, texts, and images. All it needs is the serial interface, and all it matters is your creativity.

Features

  • Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images

  • Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts
  • Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash
  • 4 grey level displaying, 800×600 resolution
  • Adjustable serial interface baud rate, 115200 by default when power up
  • Powered from 3.3V to 5V, compatible with logic level
  • Ultra low power consumption, sleeping current lower than 5mA
  • Comes with host computer software, control it directly on your computer

Applications

  • e book

  • Shopping mall POS
  • Price label
  • Industry instrument

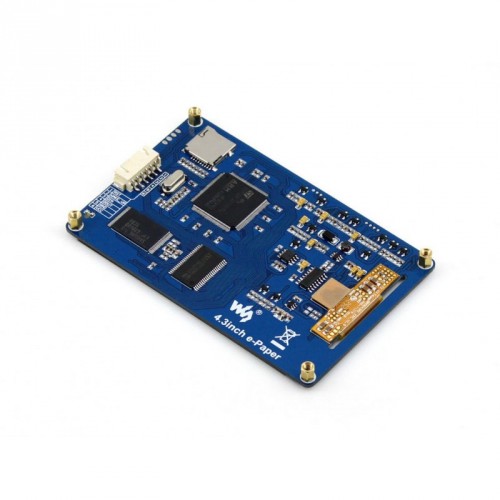

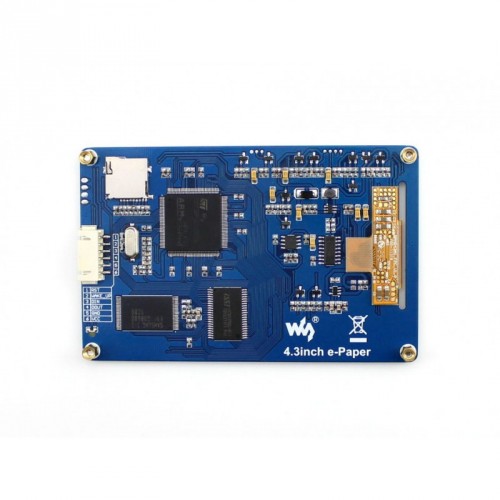

Pin Definitions

  • VCC : 3.3V~5.5V

  • GND : GND
  • DOUT : Serial data out
  • DIN : Serial data in
  • WAKE_UP : External wake up
  • RST : External reset

Limited by the hardware processing, it usually takes 1.5s to refresh each single frame image, therefore, this e-Paper is NOT capable of playing animations.

PACKAGE CONTENT

  1. 4.3inch e-Paper UART Module x1
  2. XH2.54 6-pin cable ×1

External Dimension

4.3inch-e-Paper-dimension

Development Resources

Wiki : www.waveshare.com/wiki/4.3inch_e-Paper_UART_Module

Package Content

  1. 4.3inch e-Paper UART Module x1

  2. XH2.54 6-pin cable ×1
