USB TO RS232 / RS485 / TTL Industrial Isolated Converter

Product Code: Waveshare 15817

USB TO RS232 / RS485 / TTL Industrial Isolated Converter
USB TO RS232 / RS485 / TTL Industrial Isolated Converter
USB TO RS232 / RS485 / TTL Industrial Isolated Converter
USB TO RS232 / RS485 / TTL Industrial Isolated Converter

₹2,379.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Overview

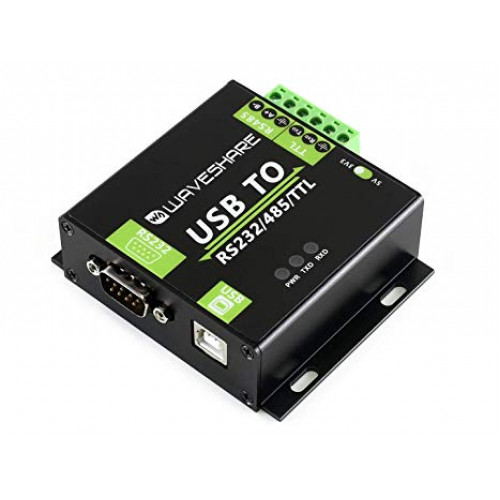

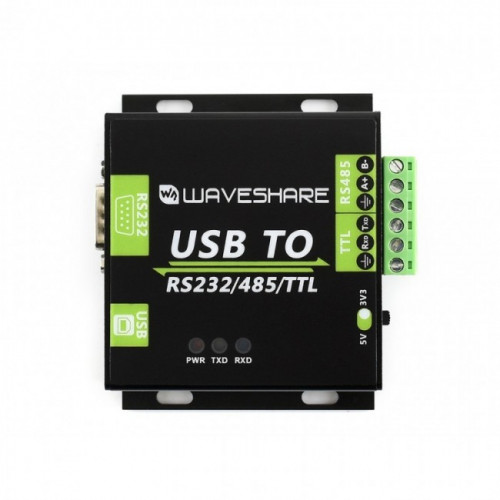

This is an industrial USB to RS232/485/TTL isolated converter with original FT232RL inside. It features embedded protection circuits such as power isolation, ADI magnetical isolation, and TVS diode, etc. What's more, the USB TO RS232/485/TTL comes with an aluminium alloy enclosure, make it solid and durable to work.

The USB TO RS232/485/TTL is very easy to use, fully automatic transceiving without delay. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

Features

  • USB TO RS232, USB TO RS485, USB TO TTL (UART)
  • Adopt original FT232RL, fast communicating, stable and reliable, better compatibility
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
  • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
  • Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other
  • Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
  • Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable
  • 3 LEDs for indicating the power and transceiver status
  • High quality USB-B and RS232 connectors, smoothly plug/pull

Specifications

  • Product type: industrial optically isolated converter

  • Baudrate: 300-921600bps
  • Host port: USB
  • Device port:  RS485/RS232/TTL
  • USB:
    • Operating voltage: 5V
    • Connector: USB-B
    • Protection: 200mA self-recovery fuse, isolated output
    • Transmission distance: ~5m
  • RS485:
    • Connector: screw terminal
    • Pins: A+, B-, GND
    • Direction control: hardware automatic control
    • Protection: 600W lightning-proof and surge-suppress, 15KV ESD protection (reserved 120R balancing resistor solder pads)
    • Transmission distance: ~1200m
    • Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
  • RS232:
    • Connector: DR9 male
    • Protection: TVS diode, surge protection, ESD protection
    • Transmission distance: ~15m
    • Transmission mode: point-to-point
  • TTL (UART):
    • Operating voltage: 3.3V/5V
    • Connector: screw terminal
    • Pins: TXD, RXD, GND
    • Protection: clamp protection diode, over-voltage/negative-voltage proof, shock resistance
    • Transmission mode: point-to-point
  • LED indicators:
    • PWR: red power indicator, light up when there is USB connection and voltage is detected
    • TXD: green TX indicator, light up when the USB port sends data
    • RXD: blue RX indicator, light up when the device ports send data back
  • Operating environment:
    • Temperature: -15℃ ~ 70℃
    • Humidity: 5%RH ~ 95%RH
  • Operating system: Windows 10 / 8.1 / 8 / 7 / XP

Dimensions

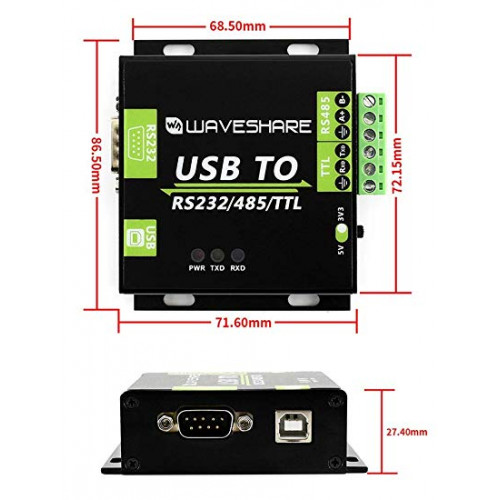

USB TO RS232/485/TTL dimensions

Includes

  1. USB TO RS232/485/TTL x1
  2. USB cable x1

Development Resources

Wiki : www.waveshare.com/wiki/USB_TO_RS232/485/TTL
