Universal e-Paper Raw Panel Driver Shield for Arduino/NUCLEO

Product Code: Waveshare 15082

Universal e-Paper Raw Panel Driver Shield for Arduino/NUCLEO
Universal e-Paper Raw Panel Driver Shield for Arduino/NUCLEO
Universal e-Paper Raw Panel Driver Shield for Arduino/NUCLEO
Universal e-Paper Raw Panel Driver Shield for Arduino/NUCLEO

₹1,289.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

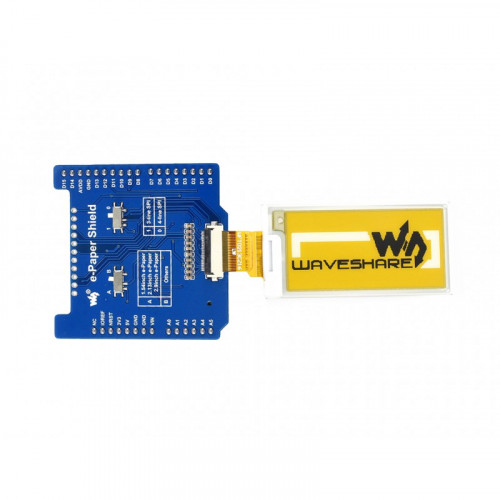

Universal e-Paper Driver Shield for Arduino/NUCLEO, supports various Waveshare SPI e-Paper raw panels.

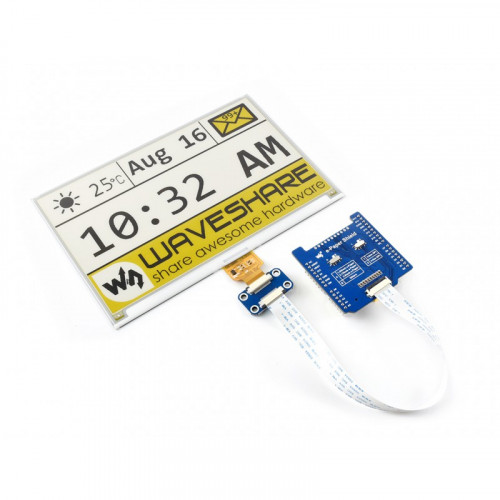

This is a universal driver board for connecting Arduino/NUCLEO and e-Paper raw panels, can be used to drive various SPI interface e-Paper from Waveshare.

Features

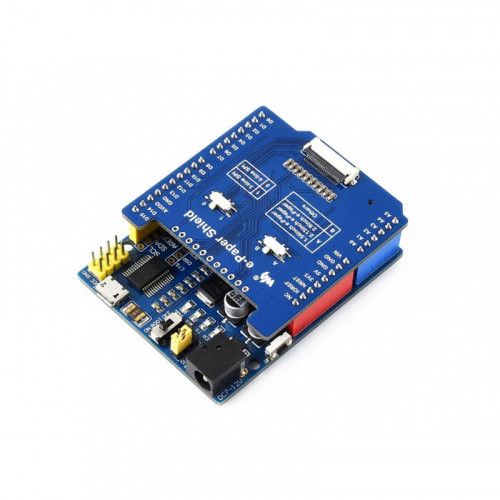

  • Standard Arduino connectivity, compatible with host boards like UNO, Leonardo, NUCLEO, XNUCLEO
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Onboard external RAM, more available space
  • Micro SD slot, images can be stored on TF card for displaying
  • Reserved control interface, for connecting with other control boards/li>
  • Comes with development resources and manual (examples for Arduino/STM32)

Specifications

  • Operating voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI (default)
  • Outline dimension: 53.34mm × 53.34mm

Interface

Pin Arduino/NUCLEO PIN Description
VCC 5V Power
GND GND Ground
SCK SCK SPI clock input
MOSI MOSI SPI data input
MISO MISO SPI data output
EPD_CS D10 e-Paper chip selection
EPD_DC D9 e-Paper data/command
EPD_RST D8 e-Paper reset
EPD_BUSY D7 e-Paper busy
SD_CS D6 SD card chip selection
SPIRAM_CS D5 SPI RAM chip selection

Dimensions

e-Paper Shield dimensions

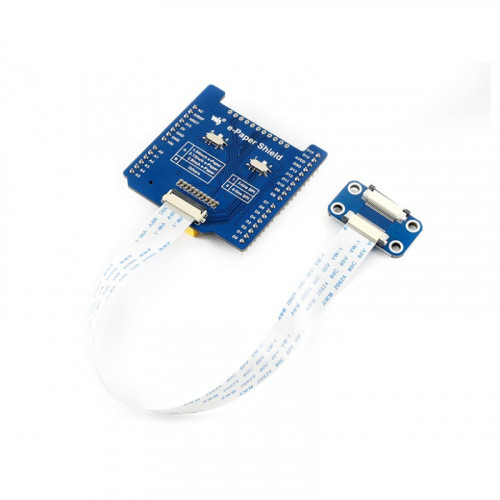

PACKAGE CONTENT

Note: e-Paper and Raspberry Pi are NOT included.

  1. e-Paper Shield x1
  2. e-Paper Adapter x1
  3. 24PIN FFC x1

Development Resources

Wiki : www.waveshare.com/wiki/e-Paper_Shield
