WiPy 2.0

Product Code: Seeed 109110002

WiPy 2.0
WiPy 2.0
WiPy 2.0
WiPy 2.0
WiPy 2.0
Brand: Seeedstudio

₹2,179.00
GST inclusive



Qty:

Availability: 2 In Stock


Add to Wish List

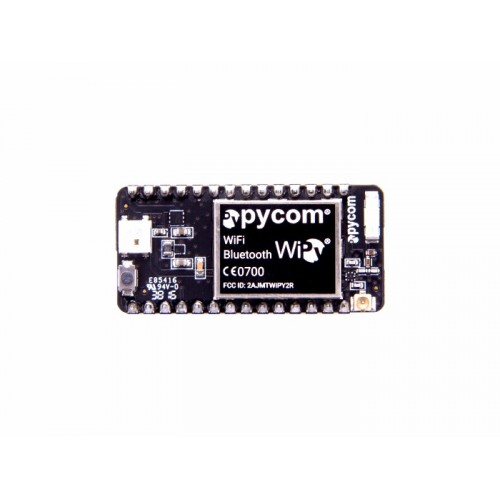

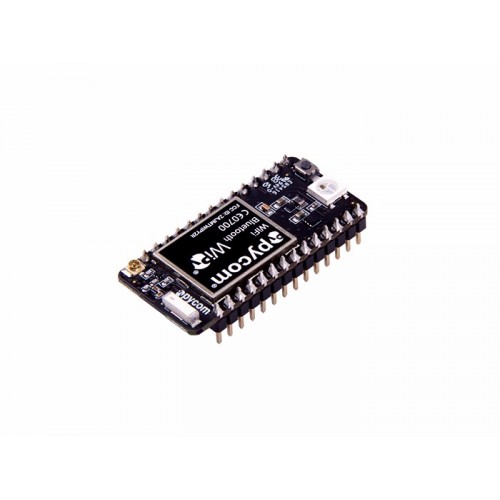

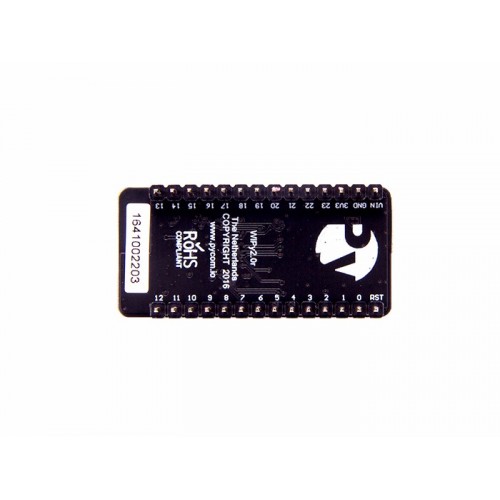

WiPy 2.0, The tiny Micro Python enabled WiFi & Bluetooth IoT development platform. With a 1KM WiFi range, state of the art Espressif ESP32 chipset and dual processor, the WiPy is all about taking the Internet of Things to the next level.

Features:

  • Powerful CPU, BLE and state of the art WiFi radio

  • 1KM Wi Range

  • MicroPython enabled, the Linux of IoT for fast deployment

  • Fits in a standard breadboard (with headers)

  • Ultra-low power usage: a fraction compared to other connected micro controllers

  • Hardware floating point acceleration

  • Python multi-threading

Specification:

Processing

  • Espressif ESP32 chipset

  • Dual processor + WiFi radio System on Chip.

  • Network processor handles the WiFi connectivity and the IPv6 stack.

  • Main processor is entirely free to run the user application.

  • An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA.

Interfaces

  • 2 x UART, 2 x SPI, I2C, I2S, micro SD card

  • Analog channels: 8x12 bit ADCs

  • Timers: 4x16 bit with PWM and input capture

  • DMA on all peripherals

  • GPIO: Up to 24

Security and Certifications

  • SSL/TLS support

  • WPA Enterprise security

  • FCC – 2AJMTWIPY2R

  • CE 0700

Memory

  • RAM: 512KB

  • External flash 4MB

  • Hardware floating point acceleration

  • Python multi-threading

Hash / encryption

  • SHA, MD5, DES, AES

Wifi

  • 802.11b/g/n 16 mbps

Bluetooth

  • Low energy and classic

RTC

  • Running at 32KHz

Power

  • Input: 3.3V – 5.5V

Mechanical


Technical Details

Battery Exclude
Input 3.3V – 5.5V
RTC 32KHz
WIFI 802.11b/g/n 16 mbps
Bluetooth Low energy and classic
Hash / encryption SHA, MD5, DES, AES
Memory
AM 512KB
External flash 4MB
Interfaces
Analog channels 8x12 bit ADCs
Timers 4x16 bit with PWM and input capture
GPIO Up to 24
Security and Certifications SSL/TLS support; WPA Enterprise security; FCC – 2AJMTWIPY2R; CE 0700

Part List

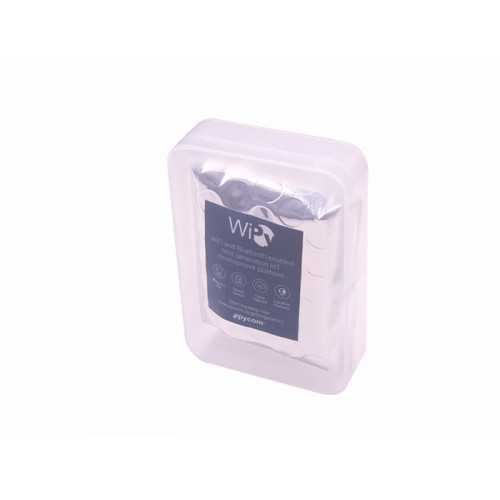

1 x WiPy 2.0

Documents

Pycom  Github

Documents  download
