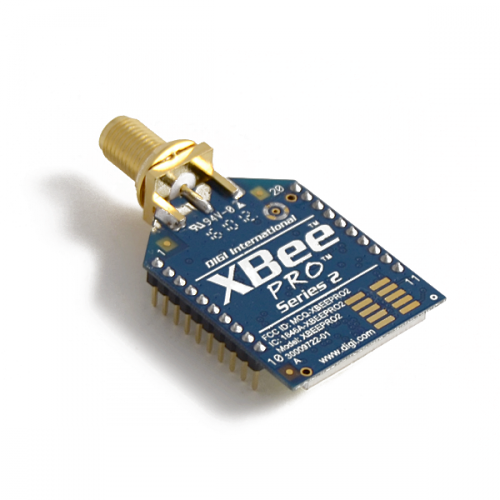

XBee Pro ZB SMA Module

Product Code: CH-44444

XBee Pro ZB SMA Module
Brand: Cooking Hacks

Call Us
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



XBee-PRO ZB embedded RF modules provide cost-effective wireless connectivity to devices in ZigBee mesh networks. Utilizing the ZigBee PRO Feature Set, these modules are interoperable with other ZigBee devices, including devices from other vendors. Programmable versions of the XBee-PRO ZB module make customizing ZigBee applications easy, even without wireless design expertise. SMA-RP Version.

Performance
RF Data Rate 250 Kbps
Indoor/Urban Range 300 ft. (90 m)
Outdoor/RF Line-of-Sight Range Int’l 5000 ft (1500 m)
Transmit Power Int’l 10 mW (+10 dBm)
Receiver Sensitivity (1% PER) -102 dBm

Features

Adjustable Power Yes
I/O Interface 3.3V CMOS UART, SPI, I2C, PWM, DIO, ADC
Configuration Method API or AT commands, local or over-the-air
Frequency Band 2.4 GHz
Interference Immunity DSSS (Direct Sequence Spread Spectrum)
Serial Data Rate 1200 bps - 1 Mbps
ADC Inputs (4) 10-bit ADC inputs
Digital I/O 10
Operating Temperature
& Humidity
-40° C to +85° C, 0-95% humidity non-condensing

Programmability

Memory 32 KB Flash / 2 KB RAM)
CPU/Clock Speed HCS08 / Up to 50.33 MHz

Networking & Security

Encryption 128-bit AES
Reliable Packet Delivery Retries/Acknowledgments
IDs and Channels PAN ID, 64-bit IEEE MAC, 15 channels

Power Requirements

Supply Voltage 2.7 - 3.6VDC
Transmit Current 205 mA
Receive Current 47 mA
Power-Down Current 3.5 uA @ 25º C
Regulatory Approvals
FCC (USA) Yes
IC (Canada) Yes
ETSI (Europe) Yes
C-TICK (Australia) Yes
TELEC (Japan) Yes
