Xadow Basic Sensors

Product Code: Seeed 101040006

Xadow Basic Sensors
Xadow Basic Sensors
Xadow Basic Sensors
Brand: Seeedstudio

₹1,649.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List

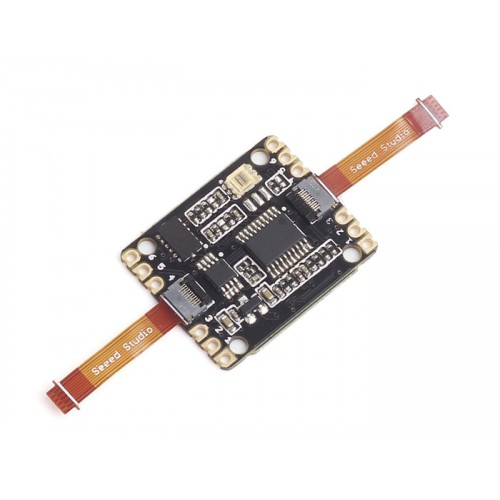

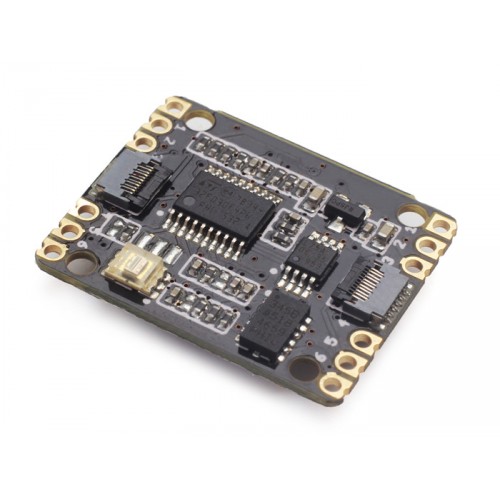

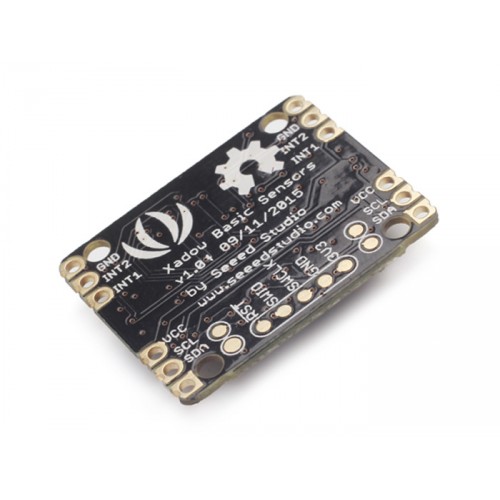

Xadow Basic Sensors integrates three different sensors on one single board:

  • 3-Axis Accelerometer for motion detection, activity monitoring and speed tracking

  • Dual diode Digital Light Sensor that can separately measure infrared, full-spectrum or human-visible light

  • Temperature Sensor for temperature monitoring

Features

  • Three-in-one sensor board

  • Plug-and-play if connected with RePhone Kit Create

  • Open source and modular design

  • Slim and small

  • Built-in 11 PIN Xadow Connectors for full flexible connection with other Xadow Modules

  • Stackable, chainable and sewable with other Xadow Modules

Technical Details

Dimensions 25.37mm x 17mm x 2mm
Battery Exclude
Microcontroller STM32F030F4
Core ARM® 32-bit Cortex® -M0 CPU
Power Supply 3.3 – 6 V (via breakout pins)
Flash 16 KB
SRAM 4 KB
Clock Speed 48 MHz
Operating Temperature Range -30°C to 70°C
Interface Interface with Xadow GSM+BLE through I2C (7-bit address 0x03)
3-Axis Accelerometer (ADXL345):
Test Range ±2g (default), ±4g, ±8g, or ±16g
Resolution Increase with g range, up to 13-bit resolution at ±16g
Digital Light Sensor (TSL2561)
Dynamic Range (Lux) 0.1 to 40,000 Lux
Dual Photodiodes Infrared and full spectrum
Temperature Sensor (LM75ADP)
Temperature Range -55°C to 125 °C
Accuracy ± 2°C from -25°C to 100°C; ± 3°C from -55°C to 125°C

Part List

Xadow Basic Sensors 1
FPC Cable 1
