YDLIDAR LIDAR X4

Product Code: MGSL YDLIDAR X4

YDLIDAR LIDAR X4

₹10,889.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

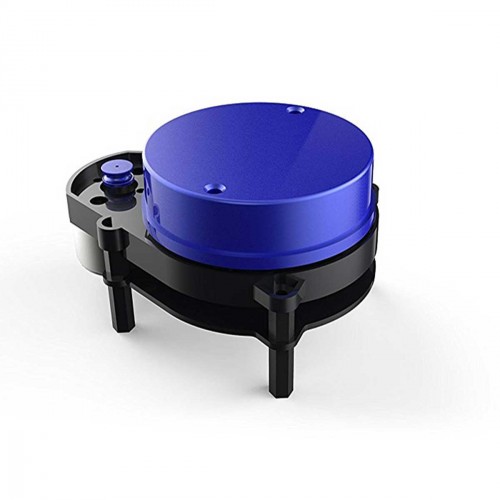

YDLIDAR X4 LIDAR is a 360-degree two-dimensional laser range scanner (LIDAR). This product is based on the principle of triangulation distance measurement, together with the relevant optical, electrical, algorithm design, to achieve high-frequency high-precision distance measurement. After power on, YDLIDAR X4 start rotating and scanning clockwise. User can get range scan point cloud data through the communication interface (Serial port/USB).

The X4 is an inexpensive solution for projects that require obstacle detection, obstacle avoidance, and/or distance measurements. For applications that are implementing a simultaneous localization and mapping (SLAM) algorithm, we recommend using a YDLIDAR G4 or the any of the Hokuyo LIDARs. All YDLIDAR products are ROS ready. The ROS package source can be found below.

Features:

  • 360° Scanning Range
  • High accuracy, stable performance
  • 10meter Range
  • Strong ability to resist environmental light interference
  • Thin design, long life span
  • FDA Class I Laser Safety
  • Configurable Motor Speed, 6Hz~12Hz
  • Maximum scan sampling frequency 5Khz

Applications:

  • Home service /cleaning robot navigation and localization
  • General robot navigation and localization
  • Smart toy’s localization and obstacle avoidance
  • Environment scanning and 3D re-modeling
  • General simultaneous localization and mapping (SLAM)
