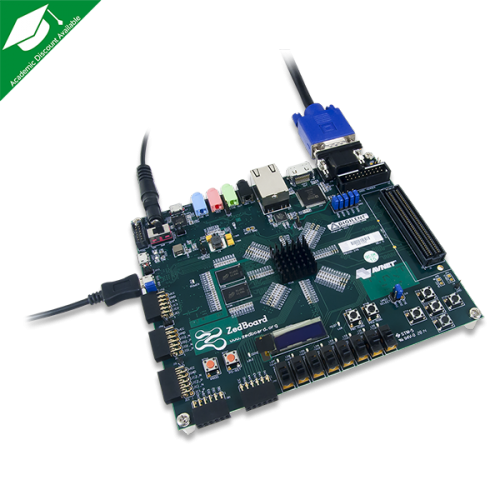

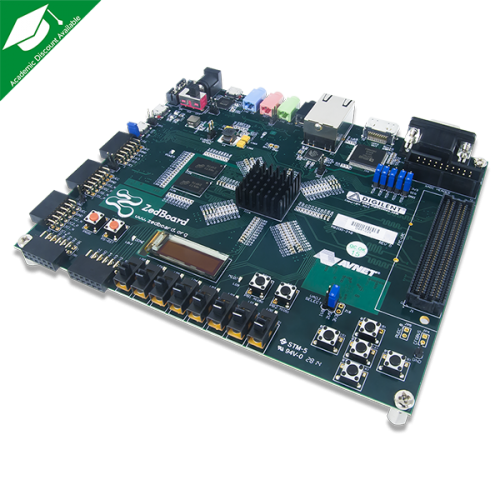

ZedBoard is a low-cost development board for the Xilinx Zynq-7000 all programmable SoC (AP SoC). This board contains everything necessary to create a Linux®, Android®, Windows®, or other OS/RTOS based design. Additionally, several expansion connectors expose the processing system and programmable logic I/Os for easy user access.
Take advantage of the Zynq-7000 AP SoCs tightly coupled ARM® processing system and 7-series programmable logic to create unique and powerful designs with the ZedBoard. Target applications include video processing, motor control, software acceleration, Linux/Android/RTOS development, embedded ARM processing, and general Zynq-7000 AP SoC prototyping. The ZedBoard kit is supported by the www.zedboard.org community website where users can collaborate with other engineers also working on Zynq designs.
If you would like an evaluation board for academic purposes, you can apply for a donation through the Xilinx University Program.
For more information or product support, please visit: http://www.zedboard.org/.|
To learn more about the ARM University Program: www.arm.com/university.
Want to master the Xilinx Zynq SoC on your ZedBoard? Take a look at "The ZYNQ Book", an accessible, readable book written for people just starting out with Zynq, as well as engineers already working with Zynq. You can download it free (or purchase a hard copy) at http://www.zynqbook.com/.
Stats: Processor/IC: Xilinx Zynq-7000 AP SoC XC7Z020-CLG484
Embedded ARM processing
General Zynq-7000 AP SoC prototyping
Xilinx Zynq-7000 AP SoC XC7Z020-CLG484
Dual-core ARM Cortex™-A9
512 MB DDR3
256 MB Quad-SPI Flash
4 GB SD card
On-board USB-JTAG Programming
USB OTG 2.0 and USB-UART
Analog Devices ADAU1761 SigmaDSP® Stereo, Low Power, 96 kHz, 24-Bit Audio Codec
Analog Devices ADV7511 High Performance 225 MHz HDMI Transmitter (1080p HDMI, 8-bit VGA, 128x32 OLED)
PS & PL I/O expansion (FMC, Pmod, XADC)
Avnet ZedBoard 7020 baseboard
Custom Digilent cardboard box with protective foam
12 V AC/DC power supply (US & EU adapters - UK plug adapter not included)
4 GB SD Card
USB A to micro-B cable
USB Adapter: Male Micro-B to Female Standard-A
Getting Started Guide
