mikromedia 7 for STM32F7

Product Code: MIKROE-2438

mikromedia 7 for STM32F7
mikromedia 7 for STM32F7
mikromedia 7 for STM32F7
mikromedia 7 for STM32F7

₹31,399.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

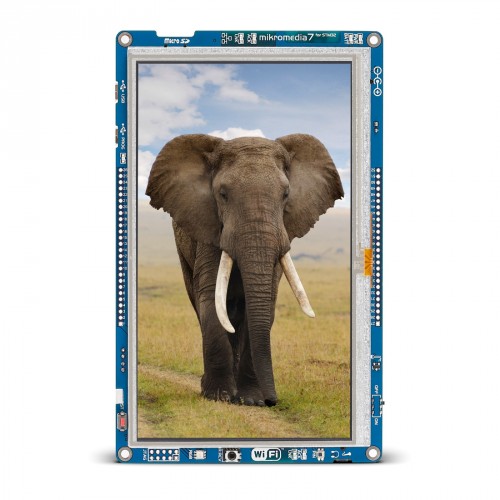

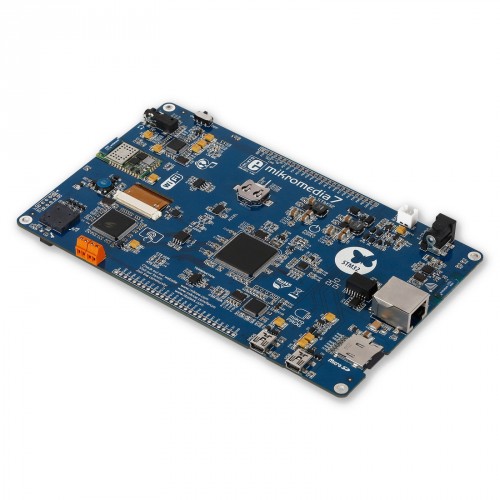

mikromedia 7 for STM32F7

Start building your applications with intuitive, user-friendly menus and dashboards using powerful STM32 ARM Cortex-M7 microcontroller. This board provides a compact high-quality multimedia development platform for STM32F746ZG device.


Power of 216 MHz

Twice faster than M4, this is the fastest MCU we offer: STM32F746ZG with the top-performance ARM core M7.

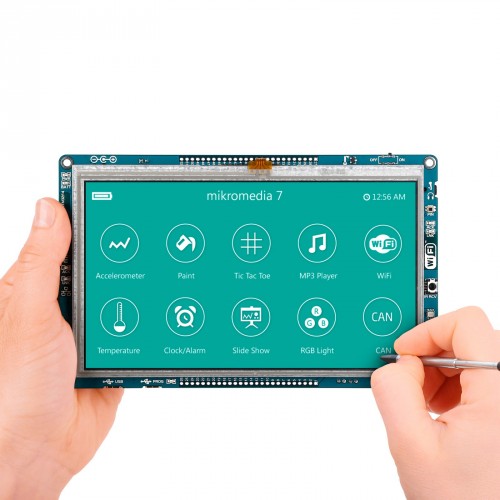

7” Touch Screen

Huge touchscreen in 800x480px resolution brings awesome graphics and vivid colors. You’ve never seen such a big display driven just by a microcontroller.

ST WiFi module

Internet of things - check! The onboard SPWF01SA WiFi module has its own STM32 MCU, with full featured TCP/IP protocol stacks integrated.

Debugger on board

With the onboard mikroProg programmer and debugger, there’s no need for external programmers, just plug in the USB cable and there you go!

Programming

Board features mikroProg for STM32 programmer and debugger. All you need to do is plug the USB cable and use mikroProg Suite for ARM or other programming software to upload new device firmware.

Compilers

mikromedia 7 for STM32F7 is fully supported by mikroCmikroBasic and mikroPascal compilers for ARM. Compilers come with dozens of examples that demostrate every feature of the board.

GUI design with Visual TFT

Easily create fantastic colourful graphical user interfaces (GUI) for mikromedia in Visual TFT software. Even total beginners will be able to create amazing applications.

Package Contains

  • Damage resistant protective box
  • mikromedia 7 for STM32F7 board
  • USB cable, Ethernet cable and two 1x26 headers
  • Plastic Pen, microSD card 2GB and 4 distancers
  • Documentation

Specification

Applications Best used as a development board but also as a final product. Use cases include industrial, medical, automotive and other dashboards and equipment.
Displays TFT full-color
Display size 7"
Resolution 800x480px
Graphic controller SSD1963
Touch Screen Resistive
Architecture ARM (32-bit)
MCU STM32F746ZG
MCU speed 462 DMIPS, 216 MHz, 2.14 DMIPS/MHz
MCU Memory 1 MB of Flash, 320 KB of SRAM
Programming Preprogrammed with fast USB HID bootloader. Also features mikroProg for STM32 connector
Key Benefits On-board microcontroller is preprogrammed with fast USB HID bootloader
Wireless connectivity Nordic nRF24L01+ transceiver, SPWF01SA WiFi module, IR receiver
Storage 8 Mbit of Serial Flash, microSD card slot
Sound and Audio VS1053 MPEG audio decoder, Piezo Buzzer
Peripherals include USB OTG connector, Temp. sensor, RTC battery, PIN photosensor, Accelerometer, Battery Charger
Expandability Two 1x26 headers, mikromedia standard pinout
Integration Mounting holes
Input Voltage 5V (Via USB) or 5-12V DC (via external adapter)

Downloads

 mikromedia 7 for STM32F7 Examples
