Rotary Switch - 10 Position

Product Code: SFE COM-13253

Rotary Switch - 10 Position
Rotary Switch - 10 Position
Rotary Switch - 10 Position
Rotary Switch - 10 Position
Rotary Switch - 10 Position

₹209.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

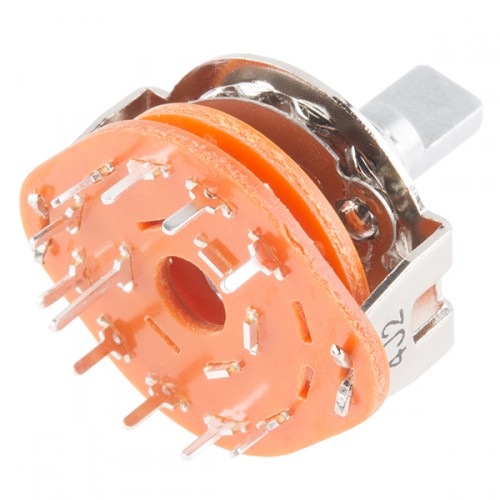

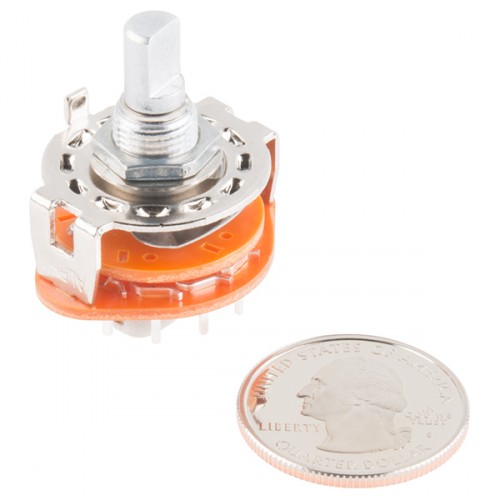

This is a single pole, 10 position rotary switch able to select up to 10 different states in a durable package. Unlike our other rotary switch, this model is much more robust and capable of handling larger currents and voltages.

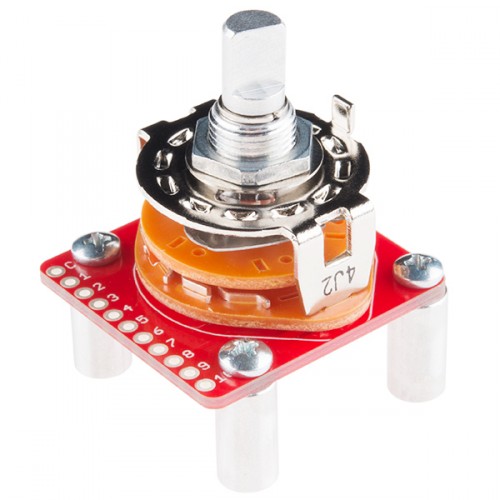

With a max voltage rating of 125VAC at 0.3A and a dielectric strength of 250VAC for 1 minute this is a serious little rotary switch capable of working with some of your bigger projects. Though this switch requires you to use 11 pins and is not breadboard friendly we do offer a breakout board (found in the Recommended Products section below) to provide easier access to its capabilities.

Includes:

  • 1x Rotary Switch - 10 Position
  • 1x Hex Nut
  • 2x Washer

Features:

  • Rating: 0.3A/125VAC
  • Contact Resistance: 50mΩ max
  • Insulation Resistance: 100MΩ @ 500VDC min
  • Dielectric Strength: 250VAC for 1 minute
  • Rotation torque: 1.0+0.5KG/cm
  • Shaft: 3/8"

Documents:
