3D Hall 3 Click

Product Code: MIKROE-3310

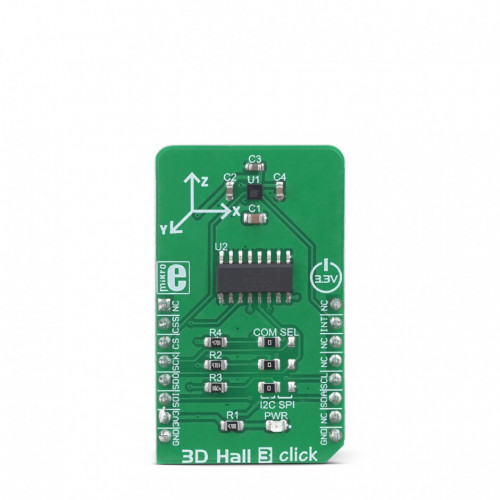

3D Hall 3 Click
3D Hall 3 Click
3D Hall 3 Click
3D Hall 3 Click

₹1,579.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Features such as the embedded self-test, support for the hard iron compensation, selectable power mode, 16-bit data output, a wide dynamic range of the measurement (±50 gauss), make this Click board™ a perfect choice for various IoT applications. The internal non-volatile memory contains the calibration parameters, making the 3D Hall 3 click a very accurate magnetic sensor, perfectly suited for the development of various position sensing applications, contactless knobs, encoders, switches, potentiometers, or some other type of magnetic field sensing applications based on the accurate spatial sensing.

How does it work?

3D Hall 3 click carries the LIS2MDL, a low power 3D magnetic sensor, from STMicroelectronics. This sensor relies on a Hall effect to accurately sense magnetic field changes on three perpendicular axes. The internal magnetic field sensing elements are multiplexed and connected to a 16bit low noise Analog to Digital Converter (ADC), which sequentially samples each sensor, providing 16-bit spatial data over the digital interface. An additional thermal sensor is also available, and it is used for thermal compensation.

MikroE Sensors 3D Hall 3 Click

The magnetic sensor has a very low pin count. Therefore, SPI and I2C lines are multiplexed on the same pins. In addition, the SPI data in (SDI) and SPI data out (SDO) share the same pin. In order to allow functionality for both SPI READ and SPI WRITE functions, 3D Hall 3 click incorporates another IC: the 74HC4053, a triple 2-channel multiplexer/demultiplexer IC from NXP is used in conjunction with the RST pin of the mikroBUS™, labeled as CSS. This allows to demultiplex the SDI/SDO pin of the LIS2MDL and route the two resulting pins to appropriate pins of the mikroBUS™ (SDI and SDO).

The rest of the communication interface selection procedure relies on switching the appropriate SMD jumpers, grouped under the I2C/SPI label. Note that all the I2C/SPI group jumpers need to be switched at the same side: all three should either be soldered as I2C or SPI. If one of them shows in the opposite position from the rest, the communication with the IC might not be possible.

The power consumption is a big concern as of lately, with the introduction of the IoT. The ability to work in a low power mode is a must for every device which is to be used for any type of IoT networking. The LIS2MDL magnetic sensor features two operational modes, with the addition of a low-pass filter (LPF). The power consumption is in a close relationship with the data output refresh rate (ODR). When operated in Low Power mode, and with the LPF and the offset cancelation turned OFF, the power consumption of the sensor alone drops down to 25 μA. Turning on the LPF and the offset cancelation will double the power consumption for the same ODR frequency to 50 μA, which is still in a domain of micropower consumption. However, filtering and offset cancelation options offer less noise and more accurate readings for both high-resolution and low-resolution modes.

The LIS2MDL magnetic sensor also features a powerful programmable interrupt engine, which allows many event sources to be signaled via the interrupt pin (INT/DRDY), which is routed from the sensor to the mikroBUS™ INT pin. A very useful function of the interrupt engine is the signaling of the data ready event. That way, the host MCU does not have to poll the sensor for the data acquisition. The sensor can simply trigger an interrupt when the data is ready for reading. The interrupt engine allows some other customizations of the interrupt signal, such as the polarity, pulse/latch mode, and so on.

The sensor provides raw data output, based on a strength of the magnetic field. The measurement is affected by many factors: slight manufacturing differences between ICs affect the readings, even the slight differences between Hall plates within the same IC might affect the accuracy, although the IC contains highly matched sensing elements. Also, the altitude might affect the readings, as well as temperature changes. Therefore, the sensor IC is equipped with the thermal sensor, used to measure the influence of the ambient temperature. Unlike errors which occur due to the influence of other parameters, the influence of the temperature is not linear, so a proper firmware development approach by using LUT tables is highly advisable.

The power mode, output data rate, interrupt thresholds for each axis, and other working parameters, including the availability of the I2C interface, are contained within the configuration registers of the LIS2MDL magnetic sensor. The sensor is highly configurable, with many configuration options. The LIS2MDL datasheet contains an in-depth explanation of all the registers and their functionality. However, 3D Hall 3 software library contains simplified functions that allow straight-forward readings to be performed, reducing the steps needed for a proper initialization and configuration of the device.

The Click board™ can operate with 3.3V MCUs only, it is set to work over the I2C by default, and it is already equipped with the pull-up resistors. It is ready to be used as soon as it is inserted into a mikroBUS™ socket of the development system.

Specifications

Type Hall effect,Magnetic
Applications It is well-suited for development of various position sensing applications, contactless knobs, encoders, switches and potentiometers, or some other type of magnetic field measuring application, based on an accurate spatial sensing.
On-board modules LIS2MDL, a low power 3D magnetic sensor, by STMicroelectronics; 74HC4053, a triple 2-channel multiplexer/demultiplexer IC from NXP.
Key Features Three independent Hall sensor channels allow high accuracy, additional thermal sensor for compensation, small package case allows very compact desing still offering a lot of features, programmable interrupt engine, low power consumption, and more.
Interface I2C,SPI
Input Voltage 3.3V
Click board size M (42.9 x 25.4 mm)



Pinout diagram

This table shows how the pinout on 3D Hall 3 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes Pin Mikrobus logo.png Pin Notes
  NC 1 AN PWM 16 NC
SDI/SDO Selection CCS 2 RST INT 15 INT Interrupt
SPI Chip Select CS 3 CS RX 14 NC
SPI Clock SCK 4 SCK TX 13 NC
SPI SDO SDO 5 MISO SCL 12 SCL I2C Clock/INT
SPI Data IN SDI 6 MOSI SDA 11 SDA I2C Data/ADDR
Power supply +3.3V 7 3.3V 5V 10 NC
Ground GND 8 GND GND 9 GND Ground

Onboard settings and indicators

Label Name Default Description
LD1 PWR - Power LED indicator
JP1-JP3 I2C/SPI Left Communication interface selection: left position I2C, right position SPI

Software support

We provide a library for the 3D Hall 3 click on our LibStock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.

Library Description

The library initializes and defines the I2C bus or SPI bus driver and drivers that offer a choice for writing data in registers and reading data from registers. The library includes function for read X/Y/Z axis data, set offset, read interrupt state. The user also has the function for configuration chip.

Key functions:

  • void c3dhall3_readXYZ( int16_t *OUT_XYZ ) - Reading X Y Z - axes values
  • void c3dhall3_configuration( void ) - Click default configuration
  • void c3dhall3_writeOffset(uint8_t axis, uint16_t offset ) - Writing X Y or Z-axis offset

Examples description

The application is composed of the three sections :

  • System Initialization - Initializes I2C communication, INT pin as input, RST pin as output and CS pin as output
  • Application Initialization - Initializes I2C driver and 3D Hall 3 to basic settings
  • Application Task - Reads and logs XYZ axes values
void applicationTask( )
{
    c3dhall3_readXYZ( &axes_xyz[0] );

    mikrobus_logWrite( " X:", _LOG_TEXT );
    IntToStr( axes_xyz[0], text );
    mikrobus_logWrite( text, _LOG_TEXT );
    mikrobus_logWrite( " Y:", _LOG_TEXT );
    IntToStr( axes_xyz[1], text );
    mikrobus_logWrite( text, _LOG_TEXT );
    mikrobus_logWrite( " Z:", _LOG_TEXT );
    IntToStr( axes_xyz[2], text );
    mikrobus_logWrite( text, _LOG_LINE );

    Delay_ms(100);
}


The full application code, and ready to use projects can be found on our LibStock page.


Other mikroE Libraries used in the example:

  • I2C
  • SPI
  • UART

Additional notes and information

Depending on the development board you are using, you may need USB UART clickUSB UART 2 click or RS232 click to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.

Downloads

 mikroBUS™ Standard specification

 LibStock: mikroSDK

 Click board catalog

 3D Hall 3 Click Libstock

 3D Hall 3 click schematic

 LIS2MDL Datasheet

 3D Hall 3 click 2D and 3D files
