BT-210

Product Code: ROBT 902-0076-000

BT-210

₹4,409.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Features

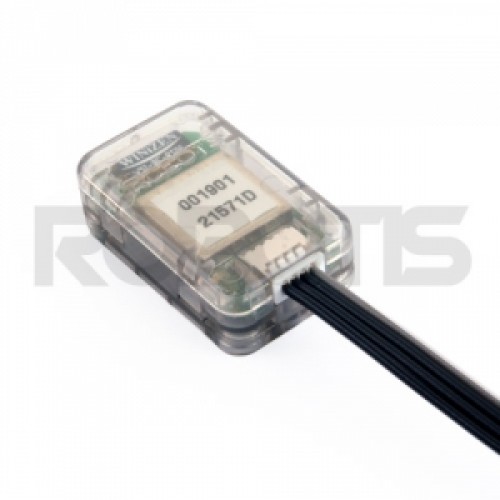

  • BT-210 is a device that enables serial communication (UART) via Bluetooth communication.
  • BT-210 has a case that protects the circuits and a connector-type cable to connect the device onto the robot.

Package Components

BT-210 (120mm cable included) 1

H/W Specification

Weight 4.51g
Dimensions 18mm x 30mm x 9.1mm
Bluetooth Specifications Bluetooth Specification 2.1 Support
Effective Communication Range 10m
Bandwidth Frequency 2.4 GHz ISM Band
Bandwidth MAX 250kbps
Default Baud Rate 57600bps
Sensitivity -81dBm (Typical)
Transmit Power 4dBm (Typical)
Bluetooth Profile Supported SPP (Serial Port Profile)
Operational Voltage 3.3V
Consumed Current 48mA (Max)
Operating Temperature -40C ~ 85C
Baud rate Range 1,200bps ~ 400,000bps
Antenna Chip Antenna
Interface UART (3.3V Level)
Conducted Net Power -6 ~ 4dBm(Class 2)

Compatible Products

Controller : CM-530 (wireless control, wireless downloading)

CM-510, CM-700 (wireless control / requires firmware update)

Caution

Only contains 1 slave module for assembling onto the robot.

The default pin code is 0000.

Please refer to the e-Manual for more information on how to change the code.

Can be used to control the robot with devices that support Bluetooth communication.

NOT Compatible with

Remote controller : RC-100, RC-100A

Controllers : CM-100, CM-5, CM-2+
