IR REFLECT click

Product Code: MIKROE-1882

IR REFLECT click
IR REFLECT click
IR REFLECT click
IR REFLECT click

₹1,259.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Description

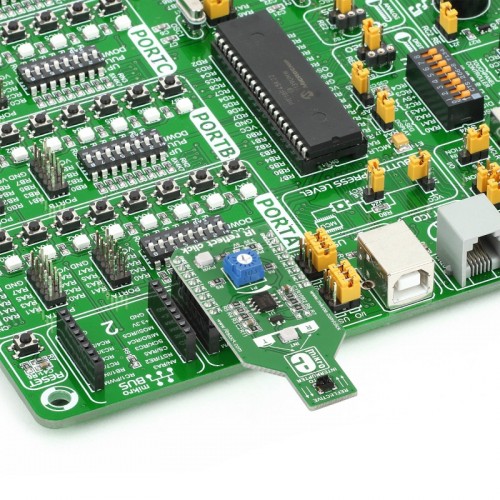

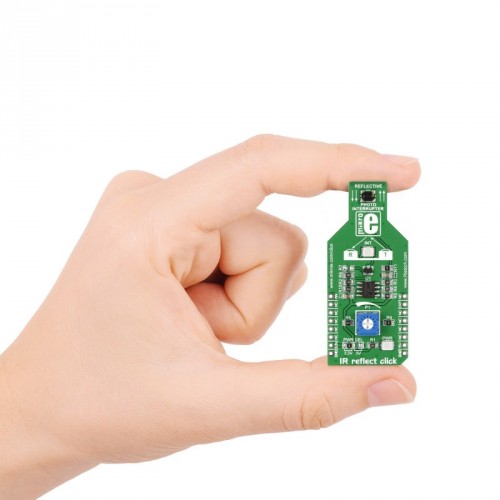

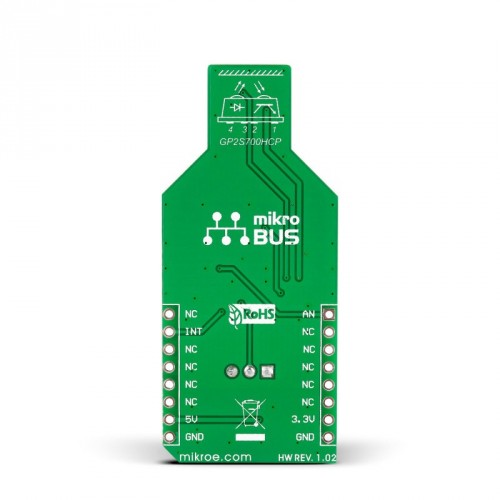

IR reflect click carries a GP2S700HCP reflective photointerrupter and an onboard potentiometer. On this type of photointerrupter the infrared emitter and receiver are facing the same direction; the infrared beam from the emitter gets bounced back to the receiver when an object is placed within the detecting range of the sensor. IR reflect click communicates with the target board microcontroller through mikroBUS™ AN and INT pins (an onboard potentiometer sets the Interrupt threshold). It’s designed to use either a 3.3V or 5V power supply.

Specification

Type Optical
Applications These sensors are used to detect an object’s presence or motion, such as a piece of paper passing through a printer
On-board modules GP2S700HCP reflective photointerrupter and an onboard potentiometer
Key Features Infrared LED and phototransistor
Key Benefits Potentiometer for setting up detection threshold
Interface Analog,GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size L (57.15 x 25.4 mm)

Downloads

 IR Reflect Click Example

 IR Reflect Click Manual
