Light click

Product Code: MIKROE-1424

Light click
Light click
Light click
Light click

₹1,889.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

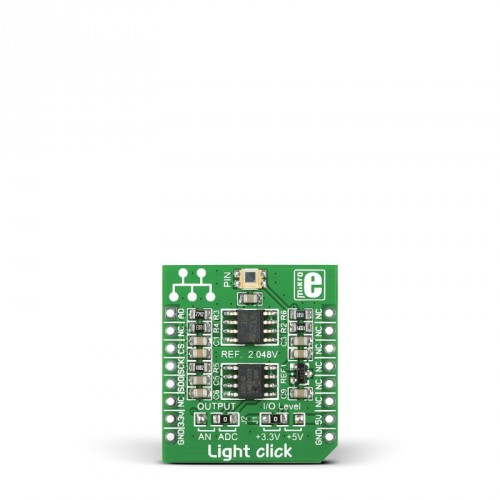

Light click is the add-on board with PD15-22CTR8 PIN photodiode, providing an effective and easy way to measure ambient light intensity. It also features MAX6106 voltage reference and MCP3201 ADC with SPI interface. Measured ambient light intensity is sent as an analog or digital signal to the main board microcontroller. Light Click™ communicates through mikroBUS™ SPI (MISO, SCK, CS) and AN lines. PD15-22C-TR8 is a high photosensitive light sensor with fast response time. Provided SMD jumper allow the user to select whether the board will be powered with 3.3V or 5V power supply.

Specification

Type Optical
Applications Board is suitable for high-resolution conversion of light intensity to frequency with no external components. It has programmable sensitivity and full-scale output frequency
On-board modules TSL230BR programmable light-to-frequency converter
Key Features Temperature compensation for the ultraviolet-to-visible light range of 320 nm to 700 nm and respond over the light range of 320 nm to 1050 nm
Key Benefits All inputs and the output are TTL compatible
Interface Analog,SPI
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)

Downloads

 Light Click User Manual

 Light Click Examples
