IrThermo click 3.3V

Product Code: MIKROE-1361

IrThermo click 3.3V
IrThermo click 3.3V
IrThermo click 3.3V
IrThermo click 3.3V

₹3,049.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

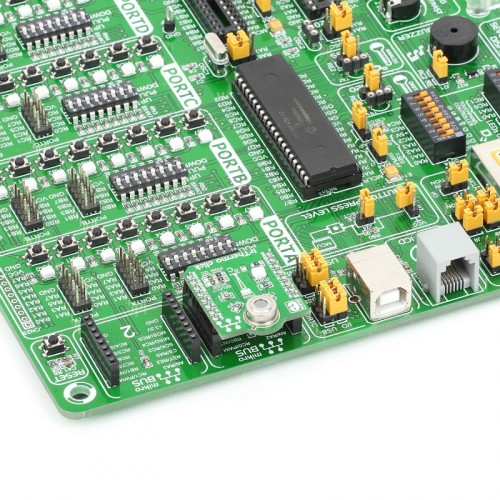

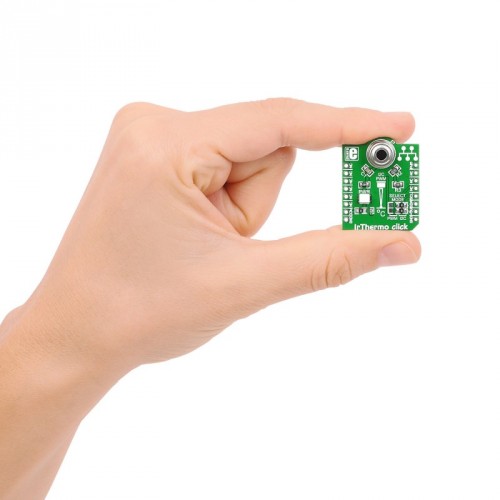

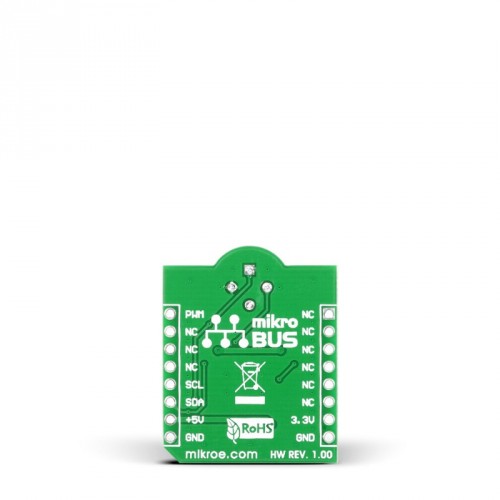

IrThermo Click 3.3V features MLX90614ESF-BAA single zone Infrared Thermometer module capable of non-contact temperature measurements. It is calibrated in wide temperature ranges: -40 to 85°C for the ambient temperature and -70 to +380°C for the object temperature (-20 to 120°C in PWM mode). IrThermo Click communicates with target board microcontroller via mikroBUS I2C lines (SCL, SDA) or PWM line. These features make this board ideal for automotive, industrial temperature control, movement detection, air conditioning control and more. The board is designed to use 3.3V power supply only.

Specification

Type Temperature,Humidity
Applications Board is ideal for automotive, industrial temperature control, movement detection, air conditioning control and more
On-board modules MLX90614ESF-BAA single zone Infrared Thermometer
Key Features 17-bit ADC powerful DSP unit and 10-bit PWM
Key Benefits It is configured to measure temperature in range of -40 to 85 °C with an output resolution of 0.14 °C
Interface PWM,I2C
Input Voltage 3.3V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)

Downloads

 IrThermo click 3.3V User Manual

 IrThermo click 3.3V Examples
