Open Garden Indoor (1 Node + 1 Gateway)

Product Code: CH-0014

Open Garden Indoor (1 Node + 1 Gateway)
Brand: Cooking Hacks

Call Us
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Open Garden is an Open Source alternative to commercial home automation to remotely control your indoor and outdoor plants. The platform consist of three different kits, each ready for a specific kind of growing plant scenario: indoor (houses and greenhouses), outdoor (gardens and fields) and hydroponics (plants in water installations).

The platform allows to control the state of the plants by sensing several parameters:

  • Soil moisture (Indoor & Outdoor kits)
  • Temperature + Humidity + Light (All kits)
  • Water sensorspHConductivityTemperature(Hydroponics kit)

Then it uses different types of actuators to modify the state of the plants by irrigating them or activating lights and oxygen pumps:

  • Water pump + Droppers for Drip Irrigation (Indoor kit)
  • Electro valve + Sprinkler for Sprinkling (Outdoor kit)
  • Oxygen Pump + Growing Light (Hydroponics kit)

The nodes send periodically the information to the Gateway that uploads the data to a web server by using any of the available wireless interfaces (WiFiGPRS3G).

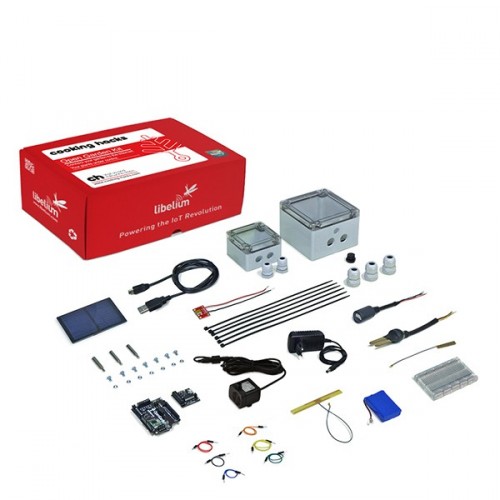

The parts of this kit are:

  • 1x General kit box
  • 1x Gateway Shield para Arduino
  • 1x Node
  • 1x DHT22 (temperature + humidity)
  • 1x Soil Moisture sensor
  • 2x LDR (embedded in each board)
  • 1x 12V Power Supply
  • 1x Big 433MHz internal antenna
  • 1x Small 433MHz internal antenna
  • 1x Big Enclosure for gateway
  • 1x Small Enclosure for node
  • 2x16mm Cable Glands
  • 3x 20mm Cable Gland
  • 1x Vent Plug
  • 6x Flange
  • 7x M3 Metal Nuts
  • 4x M3 x 10mm Metal Screws
  • 3x M3 x 6mm Plastic Screws
  • 3x Metal Spacer M3
  • 1x Battery 3,7V 2300mAh
  • 1x Breadboard
  • 1x Arduino jumper cables
  • 1x Breakout Board for microUSB
  • 1x microUSB cable

If you are interested in monitoring and irrigating several plants you can add individual nodes.

NOTE: Open Garden has been designed to work with both 220V (Europe) & 110V (US). To use the RF Power Strip in 110V power setups you just need to use this 110-220V Power Converter.
