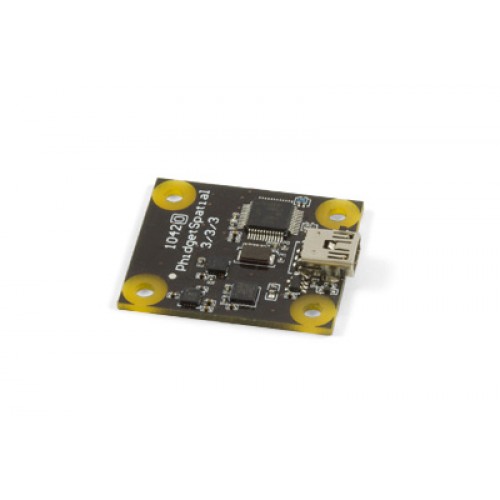

PhidgetSpatial 3/3/3 Basic

Product Code: Phidgets 1042_0

PhidgetSpatial 3/3/3 Basic
Brand: Phidgets

₹7,689.00
GST inclusive



Qty:

Availability: Discontinued


Add to Wish List



This product has been replaced by  newer version of Phidgets-1042_0B

The PhidgetSpatial 3/3/3 combines the functionality of a 3-axis compass, a 3-axis gyroscope, and a 3-axis accelerometer all in one convenient package. It is an inexpensive alternative to the 1044 - PhidgetSpatial Precision 3/3/3, and is ideal for applications where it's more important to know the general motion of an object rather than the precise amounts.

The 1042 could be used to:

  • Track whether an object is moving, and in which direction
  • Detect the presence of nearby movement or vibration
  • Track the orientation of a stationary object relative to the earth's gravitational pull and the direction relative to magnetic north

Product Specifications

Accelerometer

Acceleration Measurement Max ± 8 g
Acceleration Measurement Resolution 976.7 μg
Accelerometer White Noise σ 2.8 mg
Accelerometer Minimum Drift σ 1.9 mg
Accelerometer Optimal Averaging Period 286 s

Gyroscope

Gyroscope Speed Max ± 2000°/s
Gyroscope Resolution 0.07°/s
Gyroscope White Noise σ 0.59°/s
Gryoscope Minimum Drift σ 0.0019°/s
Gyroscope Optimal Averaging Period 8628 s

Compass

Magnetic Field Max 5.5 G
Compass Resolution 3 mG
Compass White Noise σ 1.2 mG
Compass Minimum Drift σ 87 μG
Compass Optimal Averaging Period 52 s

Board

API Object Name Spatial
Current Consumption Max 40 mA
Sampling Speed Min 1 s/sample
Sampling Speed Max 4 ms/sample
Sampling Speed Min (Webservice) 1 s/sample
Sampling Speed Max (Webservice) 12 ms/sample
USB Voltage Min 4.4 V DC
USB Voltage Max 5.3 V DC
USB Speed Full Speed
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C
