Sparkfun ProtoScrewShield

Product Code: SFES DEV-09729

Sparkfun ProtoScrewShield
Sparkfun ProtoScrewShield
Sparkfun ProtoScrewShield
Sparkfun ProtoScrewShield

₹1,689.00
GST inclusive



Qty:

Availability: 2 In Stock


Add to Wish List



Description

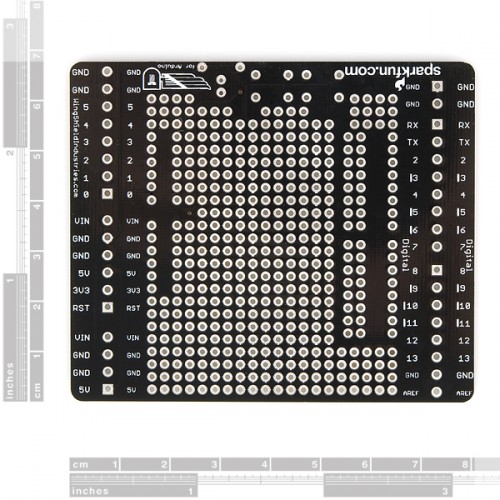

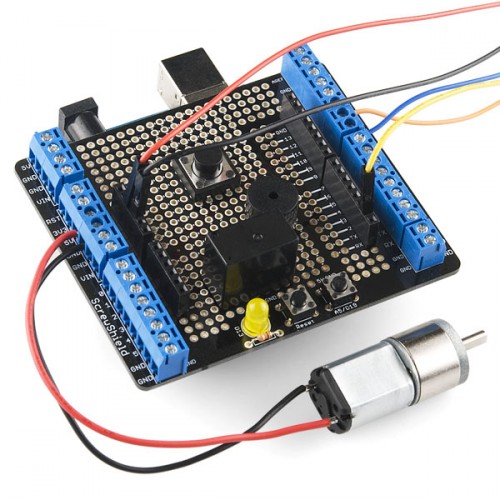

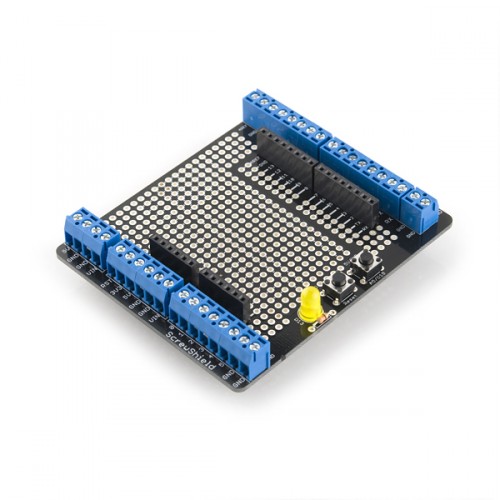

The ScrewShield extends all pins of the Arduino out to 3.5mm pitch screw terminals. It also has a lot of the utility provided by Arduino Protoshield, including: a large prototyping space of both connected and unconnected 0.1" spaced through-holes, a couple 5V and GND busses, a reset button, general use push button, and a 5mm yellow LED.

This product includes all the parts shown and comes in kit form and must be soldered together by the end user.

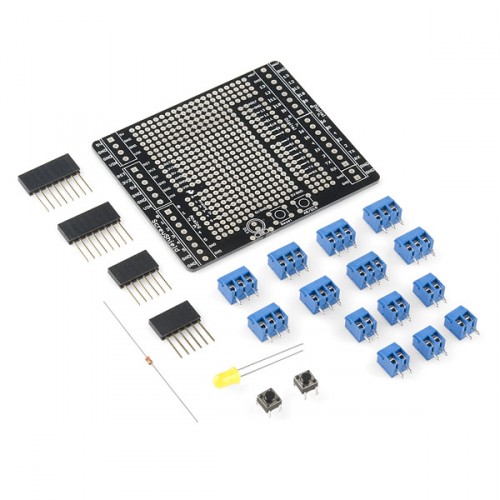

Kit Includes:

  • 1x ScrewShield PCB
  • 1x 5mm Yellow LED
  • 1x 330Ω Resistor
  • 2x 6-pin Stackable Headers
  • 2x 8-pin Stackable Headers
  • 2x Momentary Push Buttons
  • 6x 2-pin 3.5mm Screw Terminals
  • 8x 3-pin 3.5mm Screw Terminals

Documents:
