C Meter click

Product Code: MIKROE-2376

C Meter click
C Meter click
C Meter click
C Meter click

₹949.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



The chip is implemented in an astable multivibrator circuit with fixed resistors and adjustable capacitors.

The board has four different-sized plates for placing SMD capacitors (covering standard SMD packaging dimensions) as well as a socket for inserting a thru hole capacitor.

The board outputs a square wave frequency through the INT pin. Depending on the capacitor placed on the board, the value of this frequency changes. The value of a capacitor can be inferred using a simple algorithm (shown in the Libstock code example).

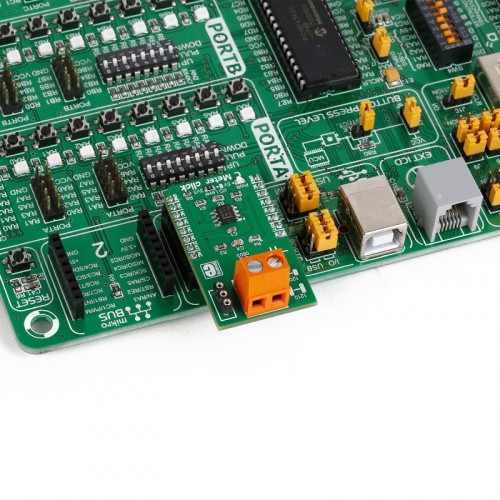

Onboard screw terminals are placed to allow the click to be used with multimeter probes.

C Meter click is designed to use a 5V power supply, but can work with either 3.3V or 5V logic levels.

Specification

Type Measurements
Applications Capacitance measurement tool
On-board modules NE-555 timer/square-wave generator
Key Features Plates and sockets for placing capacitors
Key Benefits Screw terminals allow use with multimeter probes

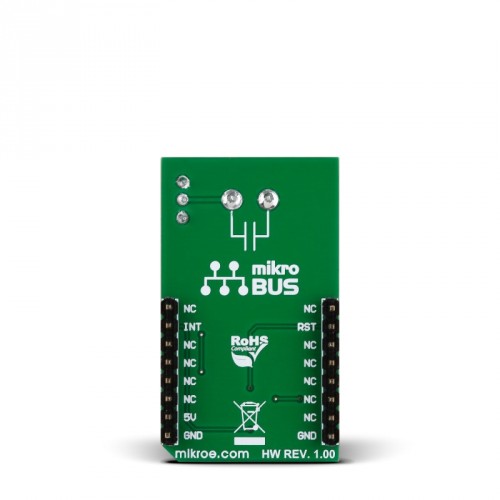

Interface GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)

C Meter click has circuitry for measuring the value of capacitors. The design is based on a NE-555 timer/square-wave generator. The chip is implemented in an astable multivibrator circuit with fixed resistors and adjustable capacitors.

Features and usage notes

C Meter click has four different-sized plates for placing SMD capacitors (covering standard SMD packaging dimensions) as well as a socket for inserting a thru hole resistor. Each plate is labeled with package size in standard imperial measurements:

  • 1210 — 3.2mm x 2.5mm
  • 1206 — 3.2 mm x 1.6 mm
  • 0805 — 2.0 mm x x1.25 mm
  • 0603 — 1.6 mm x 0.8 mm

The board outputs a square wave frequency through the INT pin. Depending on the capacitor placed on the board, the value of this frequency changes. The value of a capacitor can be inferred using a simple algorithm (shown in the Libstock code example).

Onboard screw terminals are placed to allow the click to be used with oscillator probes.

C Meter click is designed to use a 5V power supply, but can work with either 3.3V or 5V logic levels.

Programming

This code snippet uses a preset calibration value and finds the capacitance of the capacitor for displaying on the TFT.

  1 #include <stdint.h>
  2 #include <stdbool.h>
  3 #include "resources.h"
  4
  5 // C_Meter Click
  6 sbit C_METER_RST         at GPIOC_ODR.B2;
  7 sbit C_METER_INT         at GPIOD_ODR.B10;
  8 // TFT module connections
  9 unsigned int TFT_DataPort at GPIOE_ODR;
 10 sbit TFT_RST at GPIOE_ODR.B8;
 11 sbit TFT_RS at GPIOE_ODR.B12;
 12 sbit TFT_CS at GPIOE_ODR.B15;
 13 sbit TFT_RD at GPIOE_ODR.B10;
 14 sbit TFT_WR at GPIOE_ODR.B11;
 15 sbit TFT_BLED at GPIOE_ODR.B9;
 16
 17
 18
 19 void system_setup( void );
 20 void setup_interrupt( void );
 21 void InitTimer2( void );
 22 void display_init( void );
 23
 24 uint32_t int_count = 0;
 25 uint32_t timer_count_end = 0;
 26 bool sec_flag = false;
 27
 28 void main()
 29 {
 30     //Local Declarations
 31 	char uart_text[ 40 ];
 32 	float c_cal = 0.0;
 33 	float t_meas = 0.0;
 34 	float c_meas = 0.0;
 35 	float final = 0.0;
 36 	float t_cal = 0.0;
 37
 38     system_setup();
 39     setup_interrupt();
 40     InitTimer2();
 41     display_init();
 42
 43     t_cal = 1.0 / 23350.0;
 44     c_cal = t_cal / 77616.0;
 45
 46     int_count = 0;
 47
 48     while(1)
 49     {
 50
 51         if( sec_flag )
 52         {
 53             //Measurment
 54             t_meas = 1.0 / timer_count_end;
 55             c_meas = t_meas / 77616.0;
 56             final = fabs( c_cal - c_meas );
 57             //Print out
 58             FloatToStr( final, final_text );
 59             TFT_Rectangle( 100, 100, 200, 120 );
 60             TFT_Write_Text( final_text, 100, 100 );
 61             TFT_Write_Text( " Farad", 190, 100 );
 62             //Reset flags
 63             sec_flag = false;
 64             int_count = 0;
 65             timer_count_end = 0;
 66         }
 67     }
 68 }
 69
 70 void display_init( void )
 71 {
 72     TFT_Init_ILI9341_8bit( 320, 240 );
 73     TFT_BLED = 1;
 74     TFT_Set_Pen( CL_WHITE, 1 );
 75     TFT_Set_Brush( 1, CL_WHITE, 0, 0, 0, 0 );
 76     TFT_Set_Font( TFT_defaultFont, CL_BLACK, FO_HORIZONTAL );
 77     TFT_Fill_Screen( CL_WHITE );
 78     TFT_Set_Pen( CL_BLACK, 1 );
 79     TFT_Line(  20,  46, 300,  46 );
 80     TFT_Line(  20,  70, 300,  70 );
 81     TFT_Line(  20, 220, 300, 220 );
 82     TFT_Set_Pen( CL_WHITE, 1 );
 83     TFT_Set_Font( &HandelGothic_BT21x22_Regular, CL_RED, FO_HORIZONTAL );
 84     TFT_Write_Text( "C Meter click", 105, 14 );
 85     TFT_Set_Font( &Tahoma15x16_Bold, CL_BLUE, FO_HORIZONTAL );
 86     TFT_Write_Text( "C Meter", 135, 50 );
 87     TFT_Set_Font( &Verdana12x13_Regular, CL_BLACK, FO_HORIZONTAL );
 88     TFT_Write_Text( "EasyMx PRO v7 for STM32", 19, 223 );
 89     TFT_Set_Font( &Verdana12x13_Regular, CL_RED, FO_HORIZONTAL );
 90     TFT_Write_Text( "www.mikroe.com", 200, 223 );
 91     TFT_Set_Font( &Tahoma15x16_Bold, CL_BLACK, FO_HORIZONTAL );
 92 }
 93
 94 void system_setup( void )
 95 {
 96     //GPIO
 97     GPIO_Digital_Output( &GPIOC_BASE, _GPIO_PINMASK_2 );    //RST
 98     GPIO_Digital_Input( &GPIOD_BASE, _GPIO_PINMASK_10 );    //INT
 99
100     //RST Toggle
101     C_METER_RST = 0;
102     Delay_ms(50);
103     C_METER_RST = 1;
104
105     //UART
106     UART1_Init( 9600 );
107     UART1_Write_Text( "UART Initializedrn" );
108
109 }
110
111 void setup_interrupt( void )
112 {
113   GPIO_Digital_Output(&GPIOE_BASE, _GPIO_PINMASK_HIGH);  // Enable digital output on PORTD
114   GPIOE_ODR = 0xAAAA;
115   GPIO_Digital_Input(&GPIOD_BASE, _GPIO_PINMASK_10);
116
117   RCC_APB2ENR.AFIOEN = 1;              // Enable clock for alternate pin functions
118   AFIO_EXTICR3 = 0x0300;               // PD10 as External interrupt
119   EXTI_FTSR = 0x00000400;              // Set interrupt on Rising edge
120   EXTI_IMR |= 0x00000400;              // Set mask
121   NVIC_IntEnable(IVT_INT_EXTI15_10);   // Enable External interrupt
122   EnableInterrupts();                  // Enables the processor interrupt.
123 }
124
125 void ExtInt() iv IVT_INT_EXTI15_10 ics ICS_AUTO
126 {
127    EXTI_PR.B10 = 1;                             // clear flag
128    int_count++;
129 }
130
131 void InitTimer2() //1 second
132 {
133   RCC_APB1ENR.TIM2EN = 1;
134   TIM2_CR1.CEN = 0;
135   TIM2_PSC = 1124;
136   TIM2_ARR = 63999;
137   NVIC_IntEnable(IVT_INT_TIM2);
138   TIM2_DIER.UIE = 1;
139   TIM2_CR1.CEN = 1;
140 }
141
142 void Timer2_interrupt() iv IVT_INT_TIM2
143 {
144   TIM2_SR.UIF = 0;
145   timer_count_end = int_count;
146   int_count = 0;
147   sec_flag = true;
148 }

Code examples that demonstrate the usage of C Meter click with MikroElektronika hardware, written for mikroC for ARM is available on Libstock

Downloads

 C Meter click Examples

 C Meter click Schematic
