DAC Click

Product Code: MIKROE-950

DAC Click
DAC Click
DAC Click
DAC Click

₹1,889.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Description

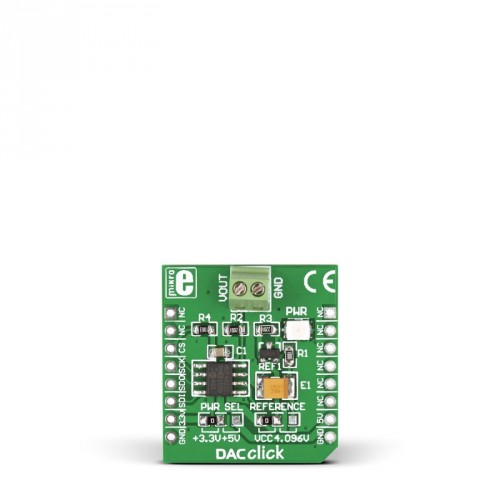

DAC Click is an accessory board in mikroBUS form factor. It includes a 12-bit Digital-to-Analog Converter MCP4921 that features an optional 2x buffered output and SPI interface. The board provides high accuracy and low noise performance for industrial applications where calibration or compensation of signals, such as temperature, pressure and humidity, are required. Board is set to use 3.3V power supply by default. Solder PWR SEL SMD jumper to 5V position if used with 5V systems.

Specification

Type DAC
Applications Device provides very high accuracy and low noise performance, and is suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications.
On-board modules 12-bit Digital-to-Analog Converter MCP4921
Key Features Output Settling Time 4.5µs, operating Current 175 µA (typ)
Key Benefits Easy to connect using provided screw terminals
Interface SPI
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)

Downloads

 DAC Click User Manual

 DAC Click Examples
