Comparator click

Product Code: MIKROE-1915

Comparator click
Comparator click
Comparator click
Comparator click

GST inclusive


Availability: Backorder

Add to Wish List

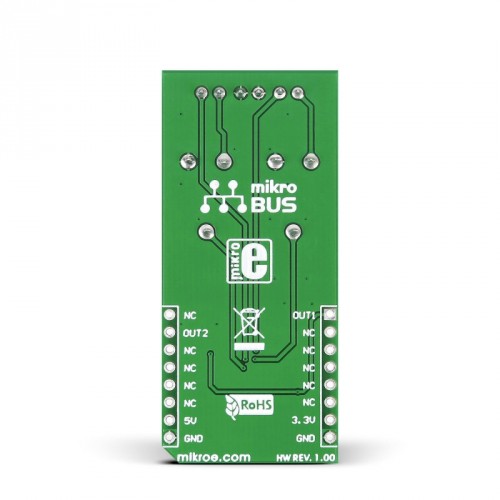

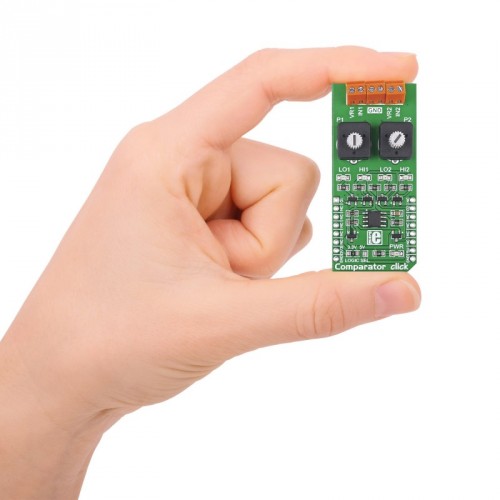

Comparator click, carrying the LM2903 IC, has two independent precision voltage comparators. Two pairs of screw terminals allow you to connect separate inputs (additional two screw terminals are for GND connections). You can use it either with a single (range of 2.0 VDC to 36 VDC) or dual power supply (from ±1.0 VDC to ±18 VDC). Two potentiometers are placed between the terminals and the IC. Each input has its own Interrupt pin on the mikroBUS socket (one on the INT pin, the other in place of the mikroBUS AN pin), here marked 01 and 02.


Type ADC
Applications A/D converters, Wide range VCO, MOS clock generator
On-board modules LM2903 IC
Key Features Two pairs of input screw terminals and two potentiometers, Range: 2-36 VDC (single power supply); ±1.0 VDC- ±18 VDC (dual power supply)
Key Benefits High precision: 2 mV offset voltage
Interface GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size L (57.15 x 25.4 mm)


 Comparator click - Example

 Comparator click - User Manual
