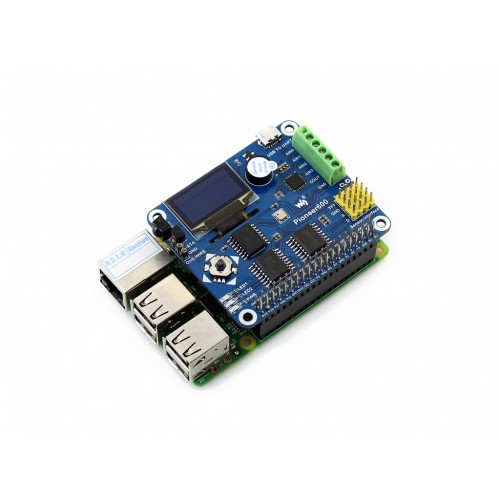

Pioneer600 - Raspberry PI Expansion Board

Product Code: Waveshare 11179

Pioneer600 - Raspberry PI Expansion Board
Pioneer600 - Raspberry PI Expansion Board
Pioneer600 - Raspberry PI Expansion Board
Pioneer600 - Raspberry PI Expansion Board

₹3,169.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



Note : the Pi and sensors are NOT included.

Pioneer600 Features

  • Supports Raspberry Pi A+/B+/2B/3B/3B+

  • <Standard I/O> dual LED, joystick, buzzer, the basic components
  • <USB TO UART> CP2102, control the Pi through serial terminal
  • <Display> 0.96inch OLED, big world in the little screen
  • <RTC> DS3231, high precision, backup battery holder is also available
  • <AD/DA> PCF8591, 8-bit resolution, screw terminal IO interface
  • <GPIO Expansion> PCF8574, more GPIO, more possibility
  • <IR Control> LFN0038K, Raspberry Pi remote control comes true
  • <Pressure Sensor> BMP280, measuring air pressure and temperature
  • <1-WIRE> for connecting 1-WIRE devices, DS18B20 is included

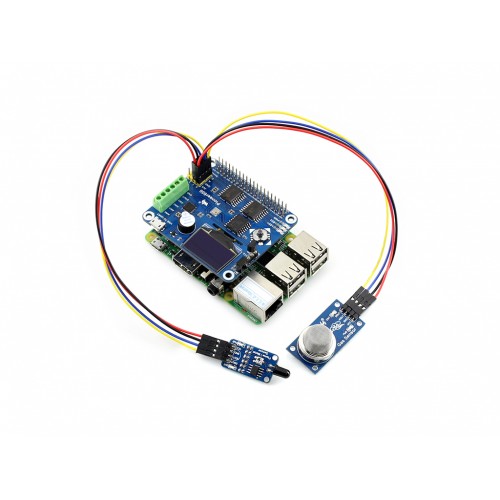

  • <Sensor Interface> for connecting various sensors

What's on the Pioneer600

Raspberry Pi Expansion Board on board resource

  1. Raspberry Pi GPIO interface : for connecting Raspberry Pi
  2. USB TO UART : control the Pi through serial terminal
  3. AD/DA IO interface : screw terminal
  4. 1-WIRE interface : for connecting 1-WIRE devices like DS18B20
  5. Sensor interface : for connecting various sensors
  6. 0.96inch OLED : SSD1306 driver, 128×64 resolution, SPI interface
  7. Buzzer
  8. CP2102 : USB TO UART converter
  9. PCF8591 : 8-bit AD/DA converter, I2C interface
  10. BMP280 : pressure sensor, I2C interface
  11. PCF8574 : I/O expansion chip, I2C interface
  12. DS3231 : high precision RTC chip, I2C interface
  13. Power indicator
  14. User LED
  15. Joystick
  16. LFN0038K IR receiver

PACKAGE CONTENT

  1. Pioneer600 x 1
  2. DS18B20 ×1
  3. USB Type A Plug to Micro B Plug Cable x 1
  4. RPi screws pack (2pcs) x 1

Development Resources

  • User manual
  • Schematic
  • Demo codes : python and C (WringPi/BCM2835 C Library/SysFs)
  • Raspberry Pi tutorials
  • Raspbian (configured system image)

Wiki : www.waveshare.com/wiki/Pioneer600
