Raspberry Pi Sensor Development Kit

Product Code: Waveshare 10276

Raspberry Pi Sensor Development Kit
Raspberry Pi Sensor Development Kit
Raspberry Pi Sensor Development Kit
Raspberry Pi Sensor Development Kit
Raspberry Pi Sensor Development Kit

₹5,249.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



Note: Raspberry Pi is NOT included.

Overview

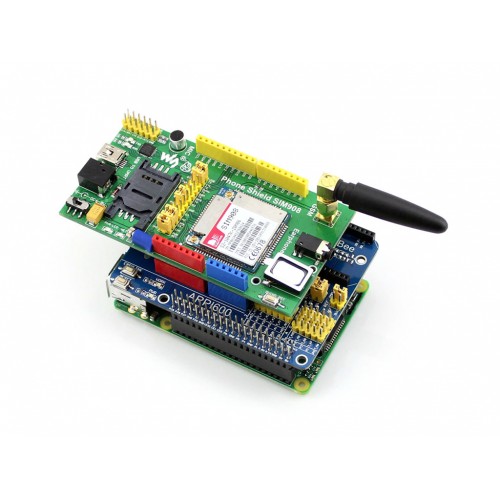

An accessories Pack (type D) to be used with Raspberry Pi. It consists of expansion board ARPI600, various sensors, and features Arduino connectivity support.

Supported Pi

  • Raspberry Pi 1 Model A+

  • Raspberry Pi 1 Model B+
  • Raspberry Pi 2 Model B
  • Raspberry Pi 3 Model B

ARPI600 Features

  • Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields

  • XBee connector for connecting various XBee modules
  • Sensor interface for connecting various sensors
  • Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter
  • Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)
  • Onboard RTC

What's on the ARPI600

Raspberry Pi Expansion Board on board resource

  1. Arduino connector : for connecting Arduino shields
  2. ICSP interface : Arduino ICSP
  3. XBee connector : for connecting XBee communication modules
  4. Sensor interface : for connecting sensors
  5. Raspberry Pi connector : for connecting Raspberry Pi
  6. USB TO UART
  7. TLC1543 : AD converter
  8. PCF8563 : RTC
  9. CP2102
  10. 32.768KHz crystal : for RTC
  11. Power indicator
  12. XBee state LED
  13. XBee and Arduino interface RESET button
  14. XBee EASYLINK button
  15. RTC battery holder : for CR1220 button battery
  16. TLC1543 reference voltage configuration jumper
  17. RTC jumper
  18. UART jumper
    • when connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port
    • when connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port
    • when connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port
  19. Arduino AD selection jumper
    • short 2 and 3 : Arduino A0-A5 as AD input
    • short 1 and 2 : Arduino A0-A5 as digital control
  20. Arduino I2C selection jumper
    • short the jumper : Arduino A4-A5 as I2C control (the A4-A5 of Arduino AD selection jumper should be opened)
  21. Arduino SPI selection jumper
    • short 1 and 2 : Arduino D11-D13 as SPI control (default)
    • short 2 and 3 : Arduino D11-D13 as digital control

Package Content

  1. ARPI600 x 1
  2. Sensors Pack × 1
  3. USB type A plug to mini-B plug cable x 1
  4. RPi screws pack (2pcs) x 1
  5. Micro SD Card 16GB x1
  6. Power adapter US standard 5V/3A micro x1
  7. Micro SD Card Reader x 1 (Extra Free)

Development Resources

Wiki :
www.waveshare.com/wiki/ARPI600
www.waveshare.com/wiki/Sensors_Pack
