Raspberry Pi LCD development Kit

Product Code: Waveshare 9191

Raspberry Pi LCD development Kit
Raspberry Pi LCD development Kit
Raspberry Pi LCD development Kit
Raspberry Pi LCD development Kit
Raspberry Pi LCD development Kit

₹5,439.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



Note: Raspberry Pi is NOT included.

Overview

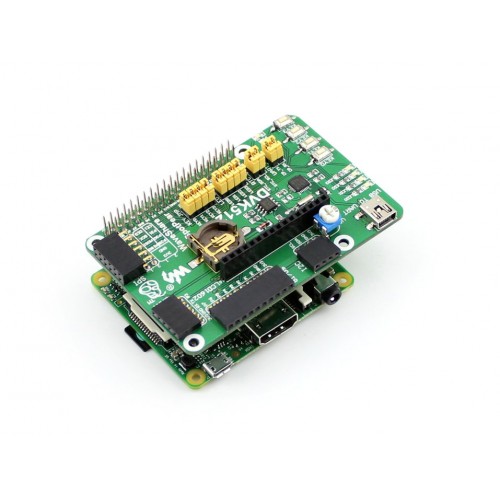

An accessories Pack (type A) to be used with Raspberry Pi. It consists of expansion board DVK512, LCD, various modules, and other accessories like wires and cables, etc.

Supported Pi

  • Raspberry Pi 1 Model A+

  • Raspberry Pi 1 Model B+
  • Raspberry Pi 2 Model B
  • Raspberry Pi 3 Model B

What's on the DVK512

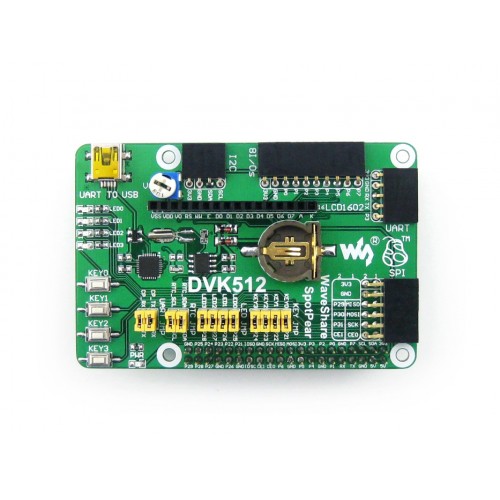

RPi expansion board on board resource

  1. Pinheaders for connecting with the RPi
  2. UART interface: easily connects to UART modules such as RS232, RS485, USB TO UART, etc.
  3. 8I/Os interface: easily connects to modules controlled by I/Os, such as 8 Push Buttons, Logic Level Converter, Mix Board, etc.
  4. SPI interface: easily connects to SPI modules such as AT45DBXX Dataflash, L3G4200D Board, etc.
  5. I2C interface: easily connects to I2C modules such as PCF8574 Expansion Board, PCF8563 RTC Board, LSM303DLHC Board, etc.
  6. Character LCD interface: for connecting character LCDs like LCD1602
  7. USB connector: USB TO UART, supported by onboard converter CP2102
  8. Power indicator
  9. User LEDs
  10. User Keys
  11. Potentiometer: for LCD1602 contrast adjustment
  12. RTC battery holder
  13. PCF8563: onboard RTC chip
  14. 32.768K crystal: RTC crystal
  15. CP2102: onboard USB TO UART chip, for debugging
  16. CP2102 jumper
  17. RTC jumper
  18. User LEDs jumper
  19. User Keys jumper

For jumpers above:

  • short the jumper to connect to I/Os used in example code
  • open the jumper to connect to other custom pins via jumper wires

Development Resources

The User Guide CD includes development resources listed as follow:

  • User manual
  • Schematic (PDF)
  • Examples in C (Linux API source code)
  • Development documentations (Raspbian configuration, C library installation)
  • Raspbian (the configured system image for RPi)

Examples in C:

  • LED (I/Os)
  • Logic Level Converter (I/Os)
  • JOYSTICK (I/Os)
  • Key (I/Os)
  • BUZZER (PWM)
  • DS18B20 (1-WIRE)
  • IRM (I/Os)
  • LCD1602 (I/Os)
  • PCF8563 (RTC)
  • PCF8591 (AD/DA)
  • LSM303DLHC (I2C)
  • L3G4200D (SPI)
  • CP2102 (UART)
  • GPS (UART)

Download: www.waveshare.com/wiki/RPi_Acce_A

Package Contains

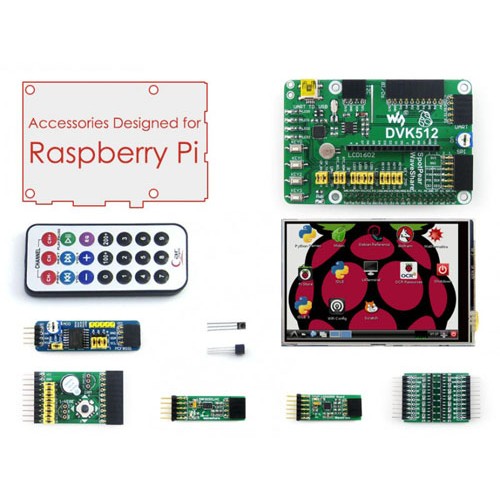

  1. DVK512 x 1

  2. 3.5inch RPi LCD (A) × 1

  3. PCF8591 AD DA Board x 1

  4. L3G4200D Board x 1

  5. LSM303DLHC Board x 1

  6. Mix Board x 1

  7. Logic Level Converter x 1
