GYRO click

Product Code: MIKROE-1379

GYRO click
GYRO click
GYRO click
GYRO click

₹2,629.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



Description

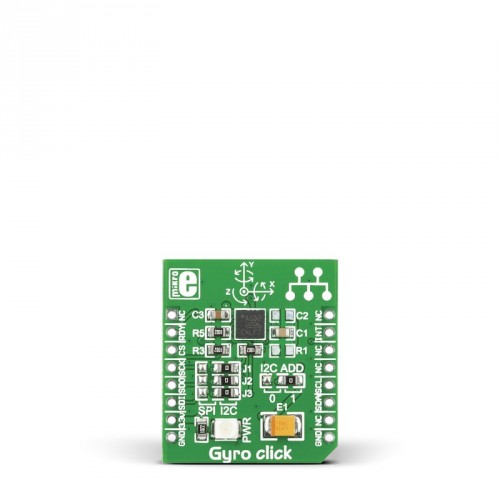

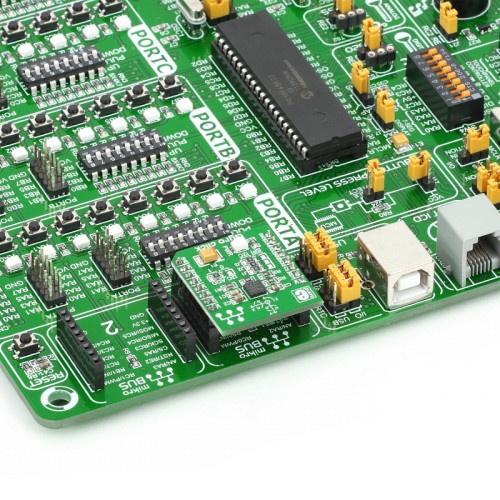

Gyro Click is an add-on board in mikroBUS form factor. It features L3GD20 three-axis digital gyroscope module capable of providing the measured angular rate, as well as ambient temperature. The L3GD20 has a full scale of ±250 / ±500 / ±2000 dps and is capable of measuring rates with a user-selectable bandwidth. Gyro Click™ communicates with the target board microcontroller via mikroBUS™ SPI (MOSI, MISO, SCK, CS), I2C (SDA, SCL), INT and RST lines. The board is designed to use 3.3V power supply only. All these features make this board ideal for gaming and virtual reality input devices, motion control, GPS navigation systems and more.

Specification

Type Motion
Applications Board is an excellent choice for gaming and virtual reality input devices, motion control, GPS navigation systems and more
On-board modules L3GD20 three-axis digital gyroscope
Key Features 16 bit-rate value data output, 8-bit temperature data output. Three selectable full scales (250/500/2000 dps)
Key Benefits Embedded power-down and sleep mode, temperature sensor and FIFO. Integrated low- and high-pass filters with user-selectable bandwidth
Interface SPI,GPIO,I2C
Input Voltage 3.3V
Compatibility mikroBUS

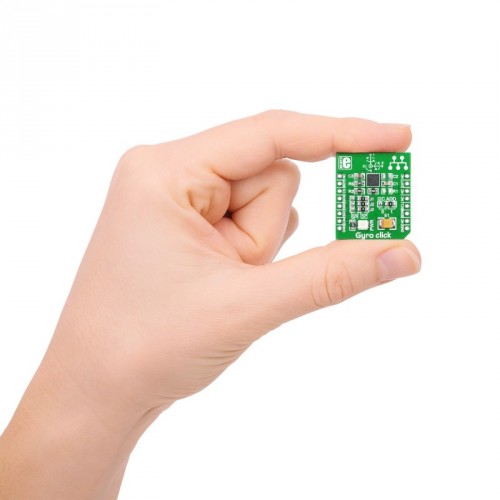

Click board size S (28.6 x 25.4 mm)

Downloads

 GYRO Click Examples

 GYRO Click User Manual
